Pacific Small Arms & Shotgun Wall Panels
Pacific Ballistic Wall Panels consist of partitions of steel or timber stud construction lined conventionally with Gib Board®.
Ballistic protection is provided by a centre layer of ballistic material.
Small Arms Panels cover the ratings G0, G1, G2, or S0.
Small Arms Panels cover the ratings G0, G1, G2, or S0.
Ballistic Specification Density of Armour Plate (kg/m2) Weapon G0 47 MK2Z, 9mm Parabellum G1 47 357 Magnum G2 63 44 Magnum S0 47 12 Gauge, SG Shell Notes:
- Panels can be manufactured to any practical size, please contact Pacific Doors
Attack Resistance
Attack resistance by means other than ballistic may be confirmed by separate tests to the client’s requirements. Special bracing requirements may need to be confirmed by a Structural Engineer.
Service
Pacific Doors Systems Limited will site measure, factory cut, pre-drill, supply and install ballistic panels.
Technical Compliance Statement

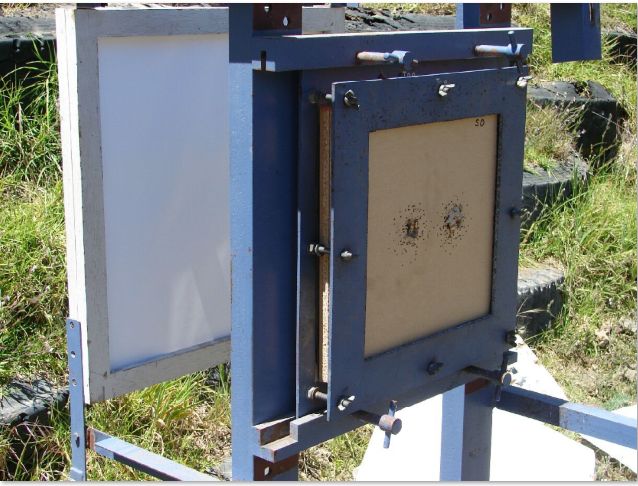

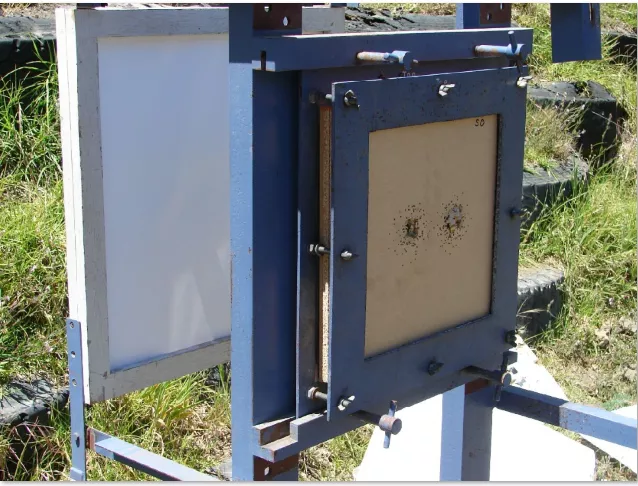

The Small Arms Panel is resistant to ballistic attack using conventional handgun or shotgun weaponry precisely tested to standard AS/NZS 2343 “Bullet Resistant Panels and elements”.
Panel centre layers are available tested to the following classes of the standard:
G0 MK2Z, 9mm Parabellum.
G1 357 Magnum.
G2 44 Magnum.
S0 12 Gauge, SG Shell.
