Pacific ARMASHIELD Ballistic Door Set
The Pacific Armashield Ballistic door set is an all-steel security door set, hung in a steel frame. The door set is designed for resistance to attack by handguns and rifles to either face. Test results refer to both single leaf and pair hinged door sets.
Product features:
- Single or pair leaf only
- Multipoint locking system
- Suitable for both interior and sheltered exterior use
- Compatible with timber stud and masonry wall
- Explosive blast tested to AS/NZS 2343
Product Options
A version of the Armashield is available tested to R2 rating.
The thickness of the Armashield door leaf is 48mm (52mm for R1 & R2 rating). Leaf weight is approximately 80kg/m2 (90kg/m2 for R1 & R2).
Wall Type Fire Resistance Rating (FRR) Door Application Max Leaf
Height (mm)Max Leaf
Width (mm)Timber Stud
MasonryNot applicable Single or Pair 2700 1200 Notes:
- Doors can be manufactured to any practical size to suit clients’ requirements.
Ballistic rated door sets require either a fully-grouted frame installation to masonry or concrete walls, or else ballistic protection built into the frame during manufacture. Matching Ballistic Wall Panels are described in a separate section.
Wall Types
This door set is suitable for installation into a timber or masonry wall of equal security construction as the door type.
Leaf Facings
All steel leaf with attack face in 6mm steel (S0 and G2) or 10mm hardened steel (R1 and R2). Non attack (inside) face is a removable light gauge steel panel (rivet fixed as standard).
Leaf Edges
The Armashield has leaf edges edges as shown below.
Meeting Stiles
Hardware must be specified in detail at the time of ordering so that correct preparation of the steel door leaf and frame can be made. This includes any door furniture or items which may be screw-fixed to or through the outside face.
Closer
Surface-mounted closers mounted on the inside face are recommended.
Hinges
Fully mortised 4½ x 4½ Stainless steel Institutional hinges are standard on the hinged Armashield door set.
Multipoint locking system
Locking systems with multiple bolts including top and bottom bolts, internally fitted to the Armashield door set, are available from Pacific Door Systems.
Timber Frame
This door set is only available in a steel frame.
Steel Frame
The steel frame profiles listed below are available for the Armashield door set
Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Notes:
- Ballistic glazing type can be of your choice.
The standard glazing system provides a flush attack face and steel beading with fixings on the “non-attack” face. The system is adaptable to various thicknesses of security glazing according to requirements.
Standard Vision Panel Cross Sections
Security Testing
Please talk to a Pacific Doors representative if you require a combination of security and ballistic resistance.
Explosive Blast Testing

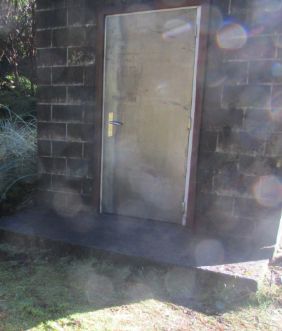

The Pacific ARMASHIELD Ballistic doorset can be delivered with explosive blast resistance with limitations on configurations and hardware. Please see our ARMASHIELD Blast datasheet for more information.
This door set is suitable for both interior and sheltered exterior use.
Rating Standard Description Bullet Resistance S0 AS/NZS 2343 Shotgun 12 gauge, 32 SG Shot G2 AS/NZS 2343 .44 Magnum R1 AS/NZS 2343 M193 5.56mm, 3.6g FMJ bullet R2 AS/NZS 2343 NATO 7.62mm 9.3g FMJ Bullet Test results apply to a single or pair doorsets.
Thermal Insulation
This door leaf has a thermal insulation rating (R-value) of 0.029 Km2/W.
Product Optional Extras
Push or Kickplates
Kickplates are not generally required on this door set.
Ventilation Grilles
Ventilation grilles are not applicable for this door set.
Power Transfer Devices
Fully mortised devices, which fully conceal cables, are recommended (such as Von Duprin EPT). Hinges with integral wiring are also available.
Overpanels are not applicable for this door set.
