Pacific 5TE Fire Security Door

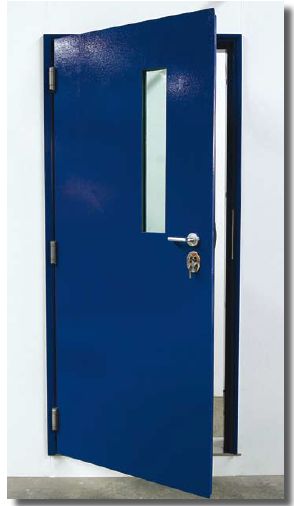

The Pacific 5TE is a medium to high level security door set with tested resistance to forced entry, ballistic, blast, and fire threats. The side hung single leaf steel door is fitted with a Mottura multiple bolt locking system. The leaf is hung on fully mortised institutional hinges in a steel frame. The Pacific 5TE is suitable for applications where high levels of security are required.
Product features:
- Single leaf only
- 120min fire rating
- Multipoint locking system
- Suitable for both interior and sheltered exterior use
- Compatible with timber stud and masonry wall
- Security tested to ENV 1627-30:1999 standard
- Ballistic tested to AS/NZS 2343:1997 standard
- Explosive Blast tested to EN 13124:2004 standard
- NZS4520.2010 standard
Typical applications:
- External door to a secure warehouse
- Staff or property protection
- Secure Plant Room
- Embassies
- Cash Handling Facilities
- Pharmacy/Drug Store
Product Options
The door set is suitable for both interior and sheltered exterior use.
Rating Standard Description Burglar Resistance Class 5 ENV 1627-30 15 Minute attack with a range of hand tools and power tools Fire Resistance FRR -/120/- AS1530.4 Bullet Resistance G2 AS/NZS 2343 44 Magnum Bullet Resistance S0 AS/NZS 2343 Shotgun 12 gauge 32g shot Explosion Resistance EXR 3 EN13124 12kg TNT at 5.5 metres Test results apply to a single door only, with the specification and hardware described. The hinge face of the door is the designated attack face.
The thickness of the 5TE door leaf is 47.6mm with an approximate leaf weight of 80kg/m2
Wall Type Fire Resistance Rating (FRR) Door Application Max Leaf
Height (mm)Max Leaf
Width (mm)Masonry -/120/- Single 2318 1107 Notes:
- This door set has a minimum size of 1686h x 806w.
Wall Types
The complete specification with resistance to burglary, fire, bullets and explosion requires an installation into masonry wall with a fully grouted frame. Alternative installations where lesser specifications are required can be discussed with Pacific Door Systems Ltd.
Leaf Facings
The attack side face is a 6mm steel plate welded to a steel framework.
The non-attack side consists of light gauge steel panels fixed to the internal steel framework.
The non-attack side consists of light gauge steel panels screw fixed to the internal steel framework.
Leaf Edges
The 5TE has leaf edges as shown below.
Meeting Stiles
This door set is not available as a pair.
The tested and certified door set can only be fitted with specific Mottura multipoint locking hardware. Any additional hardware required must be specified in detail at the time of ordering so that correct preparation of the steel door leaf and frame can be made. This includes any door furniture or items which may be screw-fixed to or through the outside face.
Closer
Surface-mounted closers mounted on the inside face are recommended.
Hinges
The leaf is hung on three fully mortised 4½” x 4½” stainless steel institutional hinges.
Mottura multipoint locking system
A Mottura 85.371 lock case is internally mounted in the leaf. The lock case has four locking bolts plus a latch bolt and it also controls two vertical lock bolts. A handle operates the latch bolt only, while the key operates the horizontal and vertical lock bolts.
The lock cylinder is protected by a Mottura “Defender” protective cover. The lock can be fitted with any double sided europrofile cylinder. The use of an Abloy “Protec” cylinder or similar is recommended for maximum security. If a single sided europrofile cylinder is to be used it must be advised at the time of ordering.
A version of the 5TE is available with panic exit hardware operating the Mottura 86.530 lock.
No other locking systems are certified for use in the 5TE door set.
Note that fitting of deadlocks and other non-self-latching hardware will make the door set non-compliant in respect to the standard NZS 4520 Fire-resistant door sets.
Timber Frame
This door set is only available in a steel frame.
Steel Frame
The steel frame profiles listed below are available for the 5TE door set. The frame is fitted with two 20mm Ø steel hinge bolts.
The fire resistance rating only applies to a door set installed in a masonry or concrete wall with a fully grouted frame. Bullet resistance rating requires the frame to be fully grouted or else to include ballistic protection in the frame.
Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Glazing Type Maximum Glazed Area Max Height (mm) Max Width (mm) Glazing Bead FRR with Vision Panel Steel Bead Up to 0.065m2 Over 0.065m2 Firelam 0.091m2 700 130 √ -/120/- -/120/- Notes:
- Please note that the height and width of the vision panel must still fall within the maximum glazed area.
- Blast and Ballistic ratings do not apply if the door has a vision panel.
Standard Vision Panel Cross Sections
Security Testing
The door set is rated to level 5 of the European ENV 1627-30:1999 “Windows, doors, shutters – Burglar resistance”, which is the second highest level of the standard. The testing incorporates a static load test with applied loads of up to 1500 kg as well as manual attack for 15 minutes with a range of hand tools and power tools.
Ballistic Testing
The door set has been successfully tested to AS/NZS 2343:1997 “Bullet-resistant panels and elements” with ratings of G2 and S0. G2 is the most severe handgun rating in the standard and constitutes an attack with a 44 calibre magnum revolver while S0 corresponds to a 12 gauge shotgun using 32g high velocity shot.
Explosive Blast Testing
The Pacific 5TE is tested to level EXR 3 of EN 13124:2004 “Windows, doors and shutters – Explosion resistance”.
An explosive charge of 12 kg TNT was detonated 5.5 metres away from the door.
Thermal Insulation
This door leaf has a thermal insulation rating (R-value) of 0.029 Km2/W.
Product Optional Extras
Push or Kickplates
Kickplates are not generally required on this door set.
Ventilation Grilles
Ventilation grilles are not applicable for this door set.
Overpanels are not applicable for this door set.
