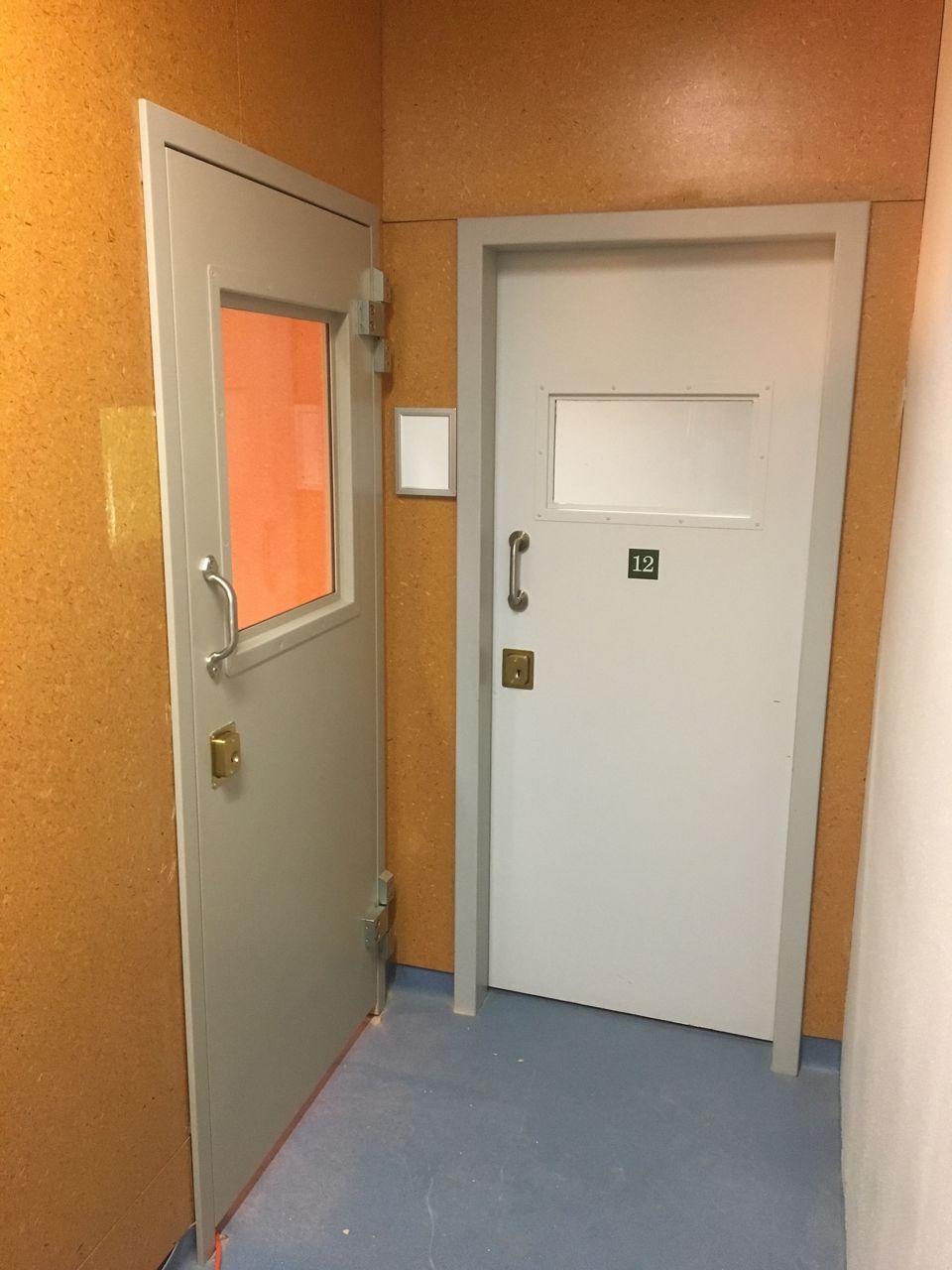

Pacific SPS3 Reinforced Security Door
The Pacific SPS3 Reinforced Security door set is suitable for commercial interiors where resistance to physical attack is required from a door with the appearance of a standard interior door.
Product features:
- Single or pair
- 4 leaf facing options
- 6 frame options
- Compatible with timber stud and masonry wall
- Optional security glazing
- Optional ventilation grilles
- Auitable for interior use only.
- Ballistic tested to AS/NZS 2343:1997 standard
Typical applications:
- Protection of staff or property
- Commercial environments
Not suitable for protection against sophisticated forced entry.
Product Options
The door set is suitable for interior use only.
Rating Standard Description Bullet Resistance S0 AS/NZ 2343 Shotgun 12 gauge SG shot The thickness of the SPS3 door leaf is 50mm with an approximate leaf weight of 60kg/m2
Wall Type Fire Resistance Rating (FRR) Door Application Max Leaf
Height (mm)Max Leaf
Width (mm)Timber Stud
MasonryNot applicable Single 2400 1200 Pair 2400 1200 Notes:
- Please note that the maximum leaf width shown above is measured per door leaf.
- Doors can be manufactured to any practical size, please contact Pacific Doors.
Leaf Facings
Available options include:
- Standard paint-quality MDF facings
- Plastic laminate (e.g. Formica)
- Vinyl/acrylic (e.g. Acrovyn, Kydex)
- Timber veneer
Leaf Edges
The leaf edges listed below are available for the SPS3 door set
Meeting Stiles
The meeting stiles listed below are applicable to paired door sets only.
Hinges
Stainless steel button tipped Ball Bearing hinges 4 per leaf. Full mortise installation.
Security Hardware
The SPS3 door set is suitable for installation of any security or architectural hardware. Hardware must be specified at time of order to enable correct preparation
Timber Frame
This door set is only available in a steel frame.
Steel Frame
The steel frame profiles listed below are available for the SPS3 door set
Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Glazing Type Maximum Glazed Area Max Height (mm) Max Width (mm) Glazing Bead Per VP Total Steel Bead Security Glazing 0.8325m2 1.665m2 925 900 √ The standard glazing system provides a flush attack face and steel beading with fixings on the “non-attack” face. Glazing with ballistic rating G2 is available.
Standard Vision Panel Cross Sections
Ballistic Testing
The SPS3 door set has been successfully tested to AS/NZS 2343:1997 “Bullet-resistant panels and elements” with a rating of S0.
Thermal insulation
This door leaf has a thermal insulation rating (R-value) of 0.502 Km2/W.
Product Optional Extras
Push or Kickplates
Kickplates are not generally required on this door set.
Ventilation Grilles
Optional, stainless steel mesh inserted into the door core and faced each side with louvre grilles (maximum 200x200mm). Not available for smoke control.
Secure overpanels are available for this door set. Please contact Pacific Doors to discuss your project requirements.
Secure sidelights and overlights are available for this door set. Please contact Pacific Doors to discuss your project requirements.
