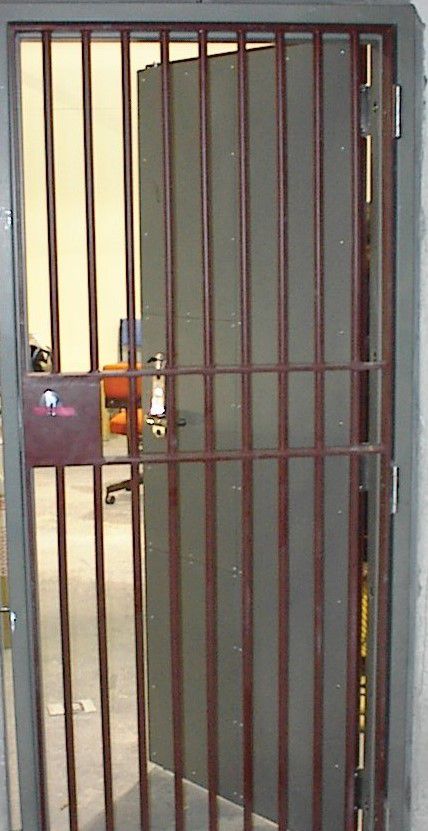

Pacific SPS2 Grille Door Set
The Pacific SPS2 Grille door set consists of an all-steel welded door leaf including steel plate or bar configurations, hung in a solid steel frame.
Product features:
- Single or pair
- Compatible with masonry wall
- All steel welded leaf
Most common applications include:
- Corridor or pass door
- Institutional gate
Product Options
The thickness of the SPS2 door leaf is 50 mm and it has an approximate leaf weight of 45kg/m2
Wall Type Fire Resistance Rating (FRR) Door Application Max Leaf
Height (mm)Max Leaf
Width (mm)Masonry Not applicable Single 3000 2000 Pair 3000 2000 Notes:
- Please note that the maximum leaf width shown above is measured per door leaf.
Wall Types
Angle frame may be fixed via the reveal and /or the inner flange depending on the wall construction available.
Leaf Facings
All steel welded leaf of steel bar and plate.
Leaf Edges
The SPS2 has a leaf edge as shown below.
Meeting Stiles
The meeting stiles listed below are applicable to paired door sets only.
Hinges
4½“ x 4½” Stainless Steel Institutional Hinges. Surface mounting is standard with 3 hinges per leaf.
The SPS2 can also be installed on block hinges, for example as a cell door in a cast-in cell front.
Pacific Doors also has its own designed and tested block hinge avaiable on request.
Food Pass
Food pass or other openings may be included in the grille door.
Locking
Any institutional lockset may be surface mounted or fitted within the grille framework.
Timber Frame
This door set is only available in a steel frame.
Steel Frame
Rolled mild steel angle 100x75x6mm with stop 25mm. The door leaf may also be hung in a folded 2mm steel frame if required.
Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Not applicable to this door set.
Product Optional Extras
Push or Kickplates
Kickplates are not generally required on this door set.
Ventilation Grilles
Ventilation grilles are not applicable for this door set.
Overpanels are not applicable for this doorset.
