Pacific SPS1 Custodial Door
The Pacific SPS1 door set is a detention or commercial security door, resistant to physical attack using hand tools, levers and heavy impacts from either face. The SPS1 includes features designed to increase impact resistance and durability in high-use situations. The door leaf is a solid core panel, fully encapsulated in steel sheet with seam-welded edges, hung in a steel frame.
Product features:
Single or pair
Multipoint locking system
Compatible with timber stud and masonry wall
Optional security glazing is available
Security tested
Ballistic tested to AS/NZS 2343:1997 standard
Typical applications:

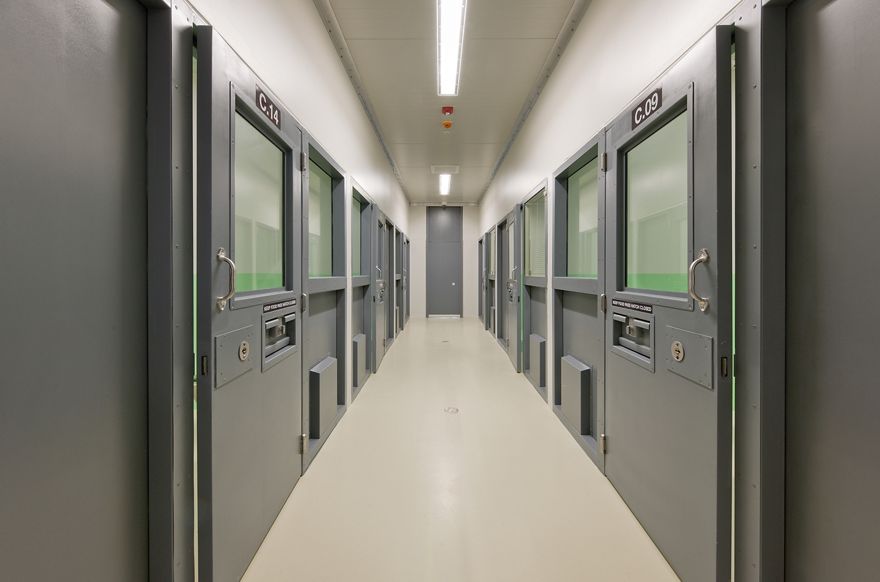

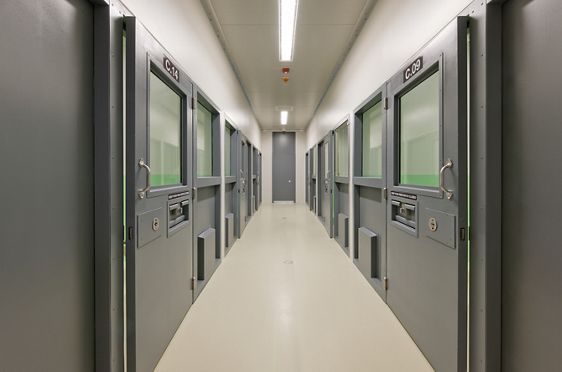

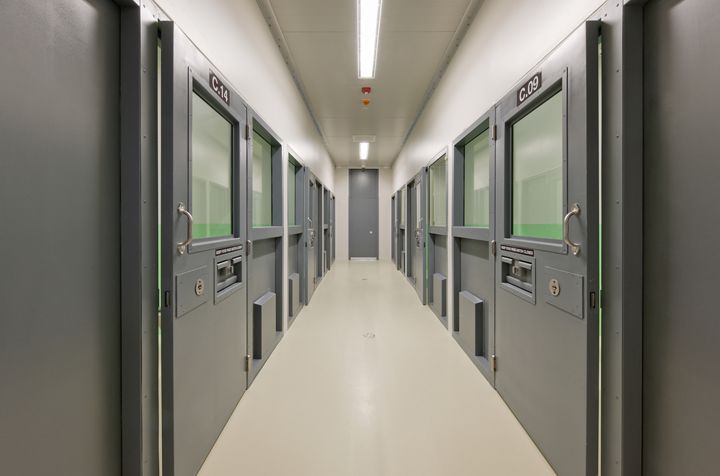

Institutional Detention door set
Prison Cell Door
Commercial Security Fire door
Stairwell door in multi-level buildings
Product Options
The door set is suitable for both interior and sheltered exterior use.
Rating Standard Description Bullet Resistance G1 AS/NZ 2343 .357 Magnum S0 AS/NZ 2343 Shotgun 12 gauge SG shot The thickness of the SPS1 door leaf is 50mm with an approximate leaf weight of 59kg/m2
Wall Type Fire Resistance Rating (FRR) Door Application Max Leaf
Height (mm)Max Leaf
Width (mm)Timber Stud
MasonryNot applicable Single 2350 1150 Pair 2350 1150 Notes:
- Please note that the maximum leaf width shown above is measured per door leaf.
Wall Types
This door set is suitable for installation into a timber or masonry wall of equal security construction as the door type.
Timber stud walls
A timber stud subframe can be factory fitted to the main frame for connection to a timber stud security wall.
Masonry walls
Frames may be installed during or after construction of masonry walls. Several proven connection systems are available.
Steel stud wall
It is recommended to trim out the door opening in a steel stud wall with double timber studs to full height.
Leaf Facings
The SPS1 is fully encapsulated in steel sheet.
- Other facings may be available, please contact Pacific Doors to discuss further options.
Leaf Edges
The SPS1 has seam welded edges as shown below.
Meeting Stiles
The meeting stiles listed below are applicable to paired door sets only.
Closer
Surface-mounted or concealed closers can be fitted to the SPS1. If concealed closers are required these must be specified at time of order so that correct preparations can be made in the door leaf and frame.
Hinges
Full mortise 4½” x 4½“ Institutional Hinges are standard (material is Stainless Steel 304).
The SPS1 can also be installed on block hinges, for example as a cell door in a cast-in cell front.
Pacific Doors also has its own designed and tested block hinge avaiable on request.
Locks and Accessories
Any security or commercial locks which suit the door thickness can be fitted to the SPS1 door set. The lock (and other hardware) must be specified at time of order so that correct preparations can be made in the door leaf and frame.
The leaf is solid core and therefore most surface mounted or mortised devices can be connected to it such as:
- Mortise, cylinder or surface mounted locks
- Frame-mounted locks
- Door position or lock status switches
- Flush or surface mounted handles
- Power cable ducts
A wide range of electronic locks may be accommodated including electromagnet clamps, shearlocks, and electric strikes.
Locking systems with multiple bolts including top and bottom bolts, internally fitted to the SPS1 door set, are available from Pacific Door Systems.
Timber Frame
This door set is only available in a steel frame.
Steel Frame
The steel frame profiles listed below are available for the SPS1 door set
Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Steel frames require packing of the frame during installation with fibrous insulation material (e.g. fibreglass, mineral wool or polyester batts).
Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Glazing Type Maximum Glazed Area Max Height (mm) Max Width (mm) Glazing Bead Per VP Total Steel Bead Security Glazing 0.765m2 1.53m2 900 850 √ Standard Vision Panel Cross Sections
Security Testing
The SPS1 door set was subjected to 50 impacts from a 200kg cement-filled bag at 4.8m/s, in the direction of opening of the door. The door was able to be opened at the end of the test and was substantially undamaged.
Ballistic Testing
The SPS1-FR door set has been successfully tested to AS 2343:1984 “Bullet-resistant panels for interior use” with ratings of:
- G1 .357 Magnum
- S0 Shotgun 12 gauge SG shot
Thermal insulation
This door leaf has a thermal insulation rating (R-value) of 0.615 Km2/W.
Product Optional Extras
Push or Kickplates
Kickplates are not generally required on this door set.
Ventilation Grilles
Optional, stainless steel mesh inserted into the door core and faced each side with louvre grilles (maximum 200x200mm). Not available for smoke control or bullet-resistant SPS1.
Food Hatches
A hinged, latching food hatch may be fitted to suit clients' requirements.
Secure overpanels are available for this door set. Please contact PDS to discuss your project requirements.
Secure sidelights and overlights are available for this door set. Please contact PDS to discuss your project requirements.
