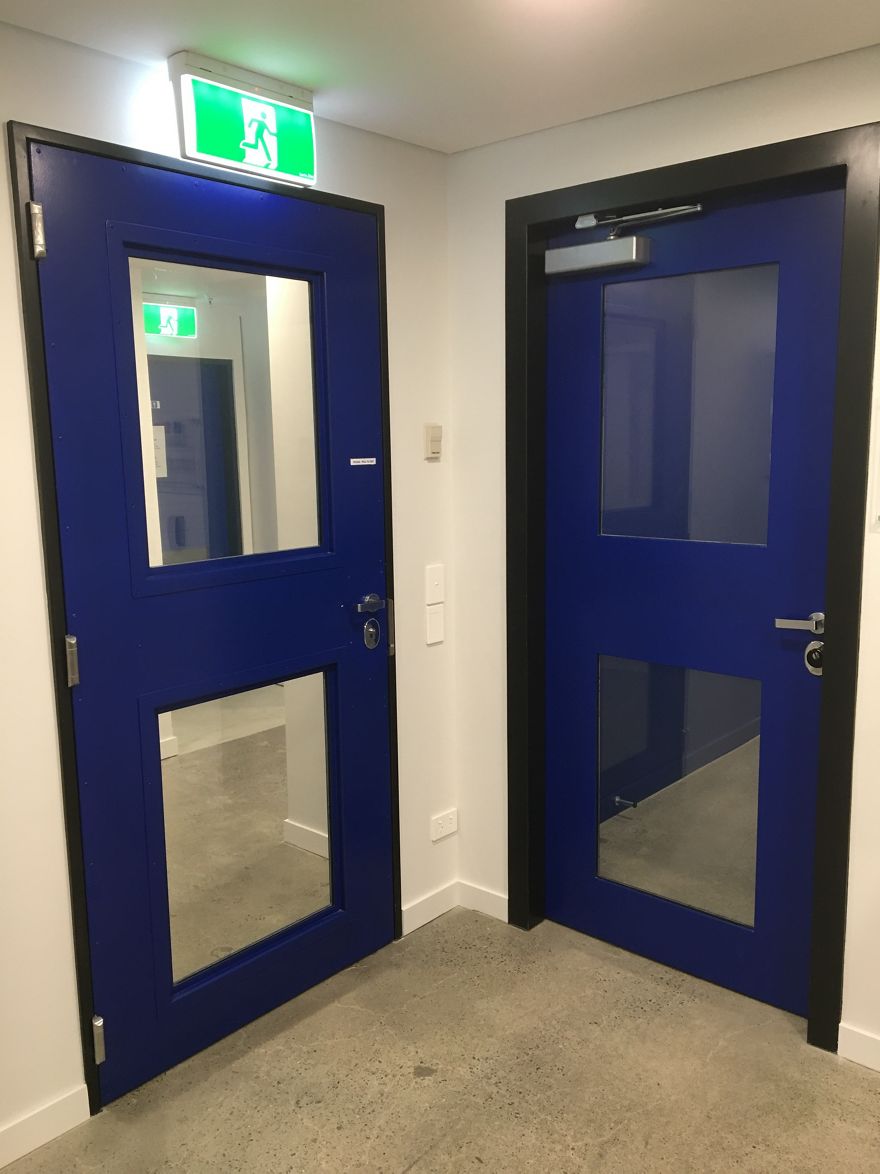

Pacific SPG2 Security Door
The Pacific SPG2 door set is a commercial security door, resistant to physical attack using hand tools, levers and heavy impacts from either face. The door leaf is a solid core panel, fully encapsulated in steel sheet with seam-welded edges, hung in a steel frame.
- Product features:
- Single or pair
- 6 frame options
- Optional security glazing available
- Suitable for both interior and sheltered exterior use.
- Compatible with timber stud and masonry wall
- Ballistic tested to AS/NZS 2343:1997 standard
Typical applications:
Bullet Resistant Security door
Product Options
The door set is suitable for both interior and sheltered exterior use.
Rating Standard Description Bullet Resistance G1 AS/NZ 2343 .357 Magnum S0 AS/NZ 2343 Shotgun 12 gauge SG shot The thickness of the SPG2 door leaf is 50mm with an approximate leaf weight of 67kg/m2
Wall Type Fire Resistance Rating (FRR) Door Application Max Leaf
Height (mm)Max Leaf
Width (mm)Timber Stud
MasonryNot applicable Single 2350 1150 Pair 2350 1150 Notes:
- Please note that the maximum leaf width shown above is measured per door leaf.
Wall Types
Timber stud walls
The door set can be installed in a timber stud wall with ballistic armour as illustrated in the installation diagrams.
Masonry walls
Standard installation uses countersunk Screwbolt anchors fixing in to a pre-formed opening. The wedging gap is sealed and the frame then fully grouted. Grouting is required for bullet resistance; alternatively ballistic armour can be provided in the frame.
Leaf Facings
The SPG2 is fully encapsulated in steel sheet.
Leaf Edges
The SPG2 has seam welded edges as shown below.
Meeting Stiles
The meeting stiles listed below are applicable to paired door sets only.
Hinges
Full mortise 4½” x 4½“ Institutional Hinges are standard (material is Stainless Steel 304).
The SPG2 can also be installed on block hinges, for example as a cell door in a cast-in cell front.
Pacific Doors also has its own designed and tested block hinge avaiable on request.
Locks and Accessories
Any security or commercial locks which suit the door thickness can be fitted to the SPG2 door set. The lock (and other hardware) must be specified at time of order so that correct preparations can be made in the door leaf and frame.
Timber Frame
This door set is only available in a steel frame.
Steel Frame
The steel frame profiles listed below are available for the SPS1 door set
Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Glazing Type Maximum Glazed Area Max Height (mm) Max Width (mm) Glazing Bead Per VP Total Steel Bead Security Glazing 0.765m2 1.53m2 900 850 √ The standard glazing system provides a flush attack face and steel beading with fixings on the “non-attack” face. Glazing with ballistic rating G2 is available
Standard Vision Panel Cross Sections
Ballistic Testing
The SPG2 door set has been successfully tested to AS 2343:1984 “Bullet-resistant panels for interior use” with ratings of:
- G2 .44 Magnum
- S1 Shotgun 12 gauge with single slug
Thermal insulation
This door leaf has a thermal insulation rating (R-value) of 0.483 Km2/W.
Product Optional Extras
Push or Kickplates
Kickplates are not generally required on this door set.
Ventilation Grilles
Ventillation grilles are not applicable for this doorset.
Power Transfer Devices
Fully mortised devices, which fully conceal cables, are recommended (such as Von Duprin EPT). Hinges with integral wiring are also available.
Secure overpanels are available for this doorset. Please contact PDS to discuss your project requirements.
Secure sidelights and overlights are available for this doorset. Please contact PDS to discuss your project requirements.
