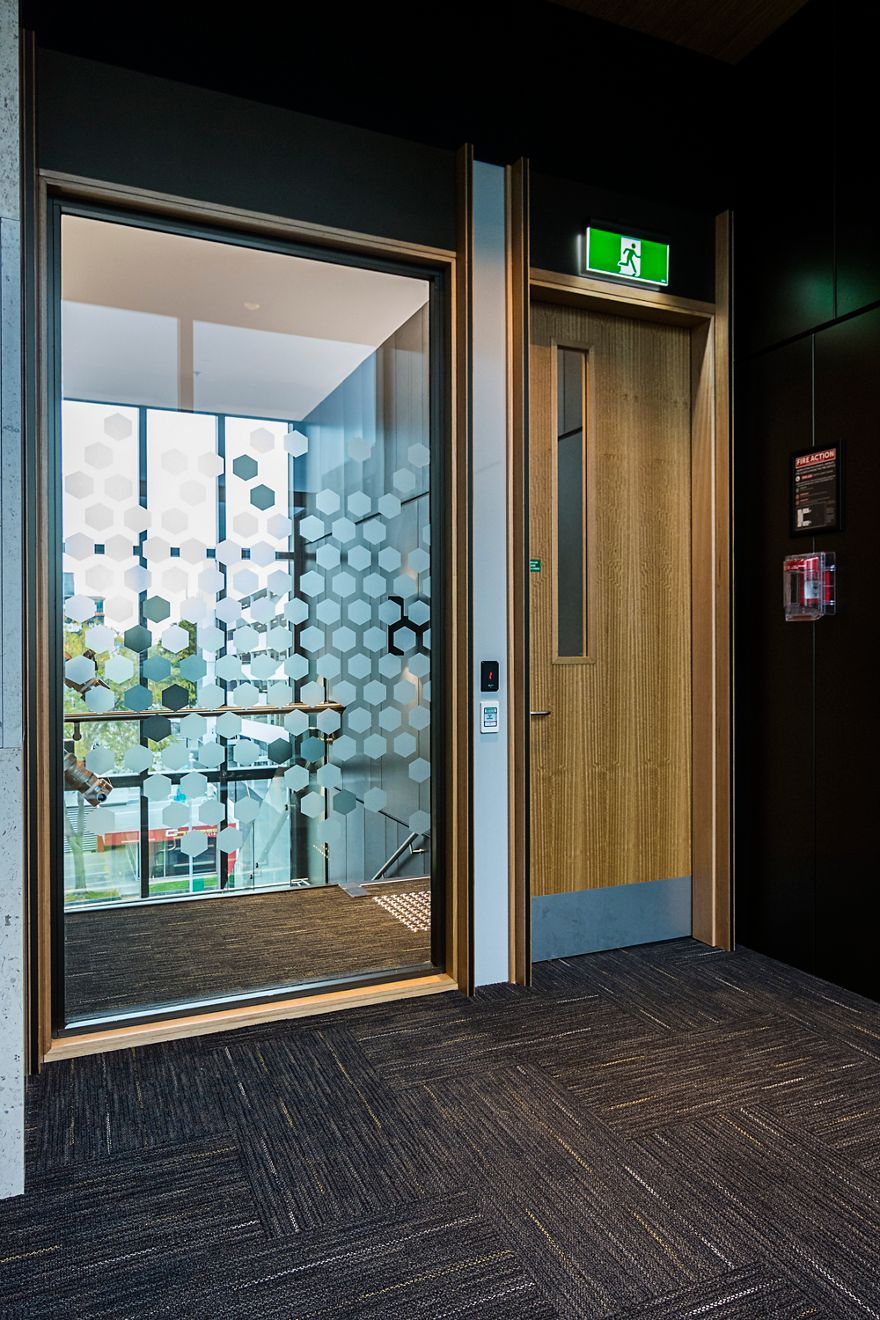

Pacific FW30 Fire Window -/30/30
The Pacific FW30 Insulating Fire Window is fire resisting glazing with an insulation rating as defined in the New Zealand Building Code Acceptable Solutions C/AS2 to C/AS6. Available in both timber and steel frame.
Product features:
- 30min fire rating
- Single glazed
- Available in both timber and steel frame
- 5 frame profile options
- Suitable for interior use only
- Can be installed next to fire doors
- Compatible with timber stud, steel stud and masonry wall
- Comply with NZS 4232.2:1988 and meet NZBC C/AS2
Product Option
Window Size
The Pacific FW30 Fire Window is a glazing system with insulating glass which allows large sized glazing and timber detailing.
The glazing is a fire window system which is fire resisting glazing as defined in the NZ Building Code Acceptable Solutions C/AS2 to C/AS6.
Glazing Type Glazing weight (kg/m2) Maximum Glazed Area Max Height (mm) Max Width (mm) Frame Type Fire Rating Timber Steel Pyrobel* 40 3.70 m2 2537 2537 √ -/30/30 Pyrobel* 40 3.58 m2 2820 2820 √ -/30/30 Pyranova 30 S3.0 (Pyro 15 mm)* 35 5.4 m2 2894 1868 √ -/30/30 - Sizes noted above are the clear view.
- Pyrobel glazed windows can be connected as a sidelight to the VP30/VP60 doorset. Pyranova glazed windows can be connected as a sidelight to the TB60 doorset.
- Glazing types marked with * indicate Grade A Safety glass.
Wall Types
- Non-load bearing timber stud/Gib Board wall conforming to minimum specification GBT30 as listed in “Gib® Fire Rated Systems 1997”.
- Non-load bearing steel stud partitions of minimum specification GBS90 (timber framed doors) or GBS60 (Steel framed doors) (Gib® Fire Rated Systems 1997).
- Universal Wall systems GBUW30a or GBUW30b
- Masonry or concrete construction.
Timber Frame
The FW30 glazing system can include panes of up to 2537mm high x 2537mm wide
Timber Framed Elevation
Timber Frame Profiles
The FW30 is available in a hardwood timber frame, 580kg/m3 or denser in the below frame profiles. 42 mm minimum frame thickness.
Timber Frame Connection to a Fire Door Detail
For VP30 System For TB30 System *For the VP30 system, the separate glazed sidelight is connected to the fire door frame with a layer of 13mm plasterboard between. The joint is covered by a timber architrave as illustrated above.
Steel Frame
The FW30 glazing system can include panes of up to 2820mm high x 2820mm wide in a steel frame.
Steel Framed Elevation
Steel Frame Profiles
The FW30 available in the below steel frame profiles.
For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Steel Frame Connection to a Fire Door Detail
Exterior Situations This window is not suited to exterior conditions.
