VP60-AP Screw-Fixed Fire Rated Access Panel

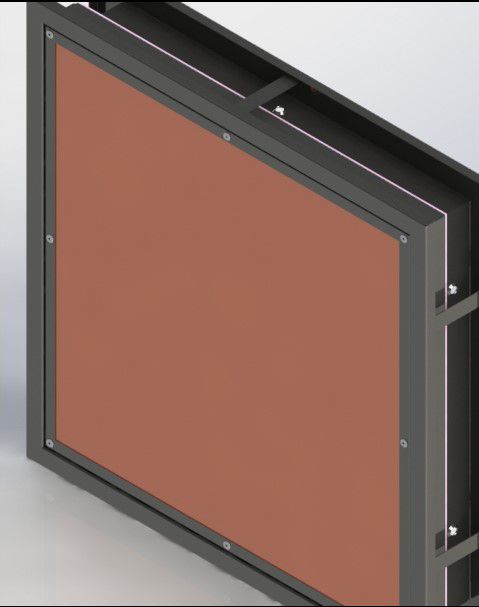

The Pacific VP60-AP Access Panel  is a fire rated wall panel screw-fixed to a steel frame. Access panels are outside the scope of NZS 4520 and are therefore not labelled.

VP60 APVP60 AP

Product Details

  • The Pacific VP60-AP Access Panel  is a fire rated wall panel screw-fixed to a steel frame. Access panels are outside the scope of NZS 4520 and are therefore not labelled.

     Wall Type Fire Resistance Rating
    Stability/Integrity/Insulation    		 Panel thickness (mm) Max Panel Height (mm) Max Panel Width (mm)
    Steel Stud Wall
    Timber Stud Wall
    Masonry Wall    		 -/60/60 48 2400 1200

    Product Options

    Leaf Facings

    • Ply

    Leaf Edges

    The leaf edges listed below are available for this panel.

    Frame Types & Profiles

    Timber Frame

    The Pacific FRR60 and FRR120 Access Panels are not available in a timber frame.

    Steel Frame

    The steel frame profiles listed below are available for this panel.

    Wall Types

    Any masonry, concrete or Gib® fire rated system of FRR at least -/60/60.

    Optional Extras

    A reed switch could be fitted to the assembly to monitor closed status.

    Tamper resistant fasteners requiring special tools for removal may be fitted.
