Pacific VP90S Premium Fire Door

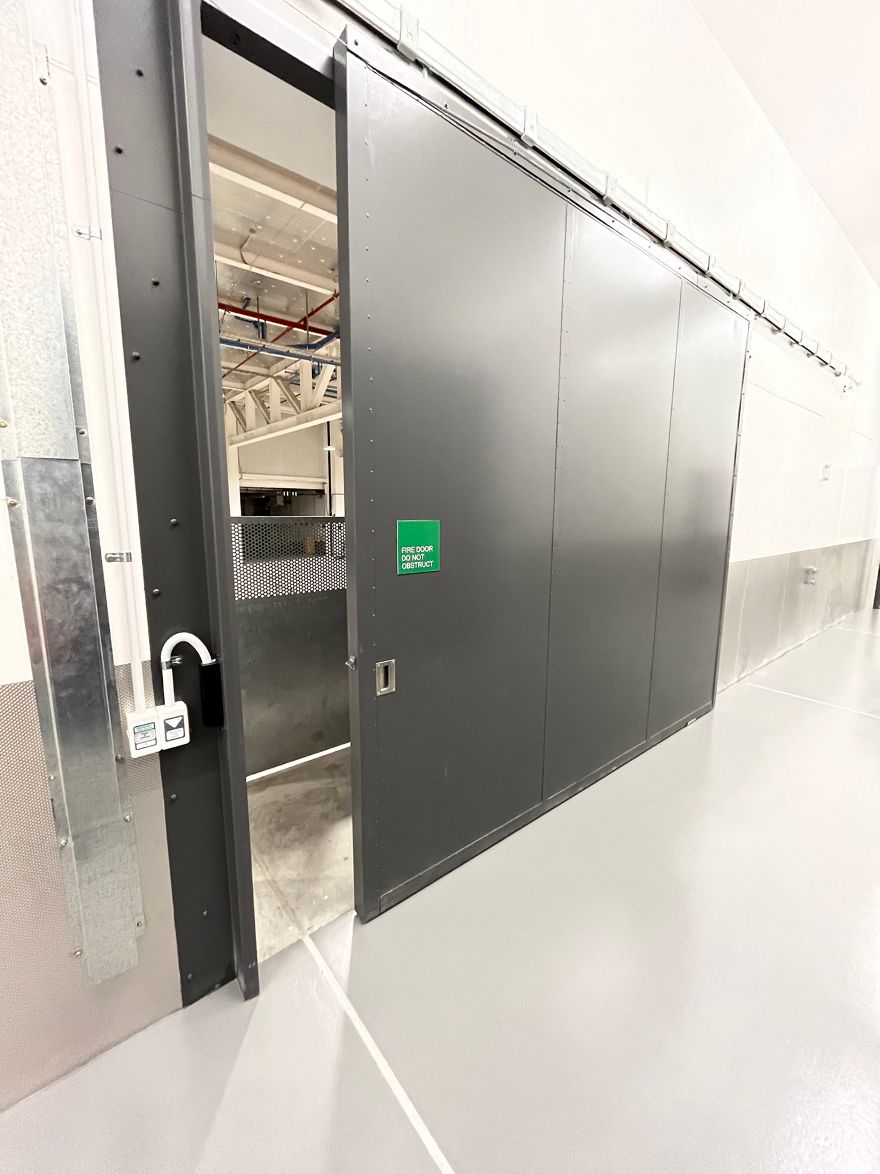

The VP90-S sliding fire door set is used where a large opening in a fire separation (up to 10m2) is required to be closed off in the event of a fire and/or in daily use.
Product features:
- 90min fire rating
- Single leaf
- 2 facing options
- Compatible with Masonry wall
- Suitable for interior only
- Available as a cavity wall system
- Supplied with stanard hardware
- Meets NZS4520.2010 standard
Product Options
For higher fire ratings and larger sized doors refer to the VP240-S slider.
VP90-S is not available as a smoke control door set.
This door type is suitable for interior installation only.
The thickness of the VP90-S door leaf is 65mm with an approximate leaf weight of at least 31kg/m2
Wall Type Fire Resistance Rating
Stability/Integrity/InsulationDoor Application Max Leaf
Height (mm)Max Leaf
Width (mm)Masonry Wall -/90/30 Single 4000 3000 Notes:
- The VP90-S is not available as a ‘pair’ door set. Refer to the VP240-S
- The maximum area per sliding door leaf is 10.5m2
Wall Types
Masonry
The VP Slider may be hung from a concrete or masonry wall either of precast concrete (thickness 100mm minimum) or grouted blockwork (thickness 190mm minimum).
Installation on plasterboard walls no longer compliant as of February 2024.
Leaf Facings
- Plywood
- Steel Sheet 0.9mm
Leaf Edges
The leaf edges listed below are available for the VP90-S door set
Meeting Stile
Not applicable for this door set.
Please refer to the installation instructions for more information on the frame profiles of this door set.
Please contact PDS for information on vision panel options.
Thermal insulation
This door leaf has a thermal insulation rating (R-value) of 0.692 Km2/W.
Hardware/Closing Systems
A Standard Track System is supplied with this door set.
Standard Closer
Weight and pulley system with self-closure activated by fusible link in the event of fire.
Electromagnetic Closing Weight System
A weight and pulley system modified for electromagnetic release is available. Closure is on fire/smoke detection activated by sensors (by others) mounted each side of the door set to lintel or ceiling.
Product Optional Extras
Not applicable for this door set.
