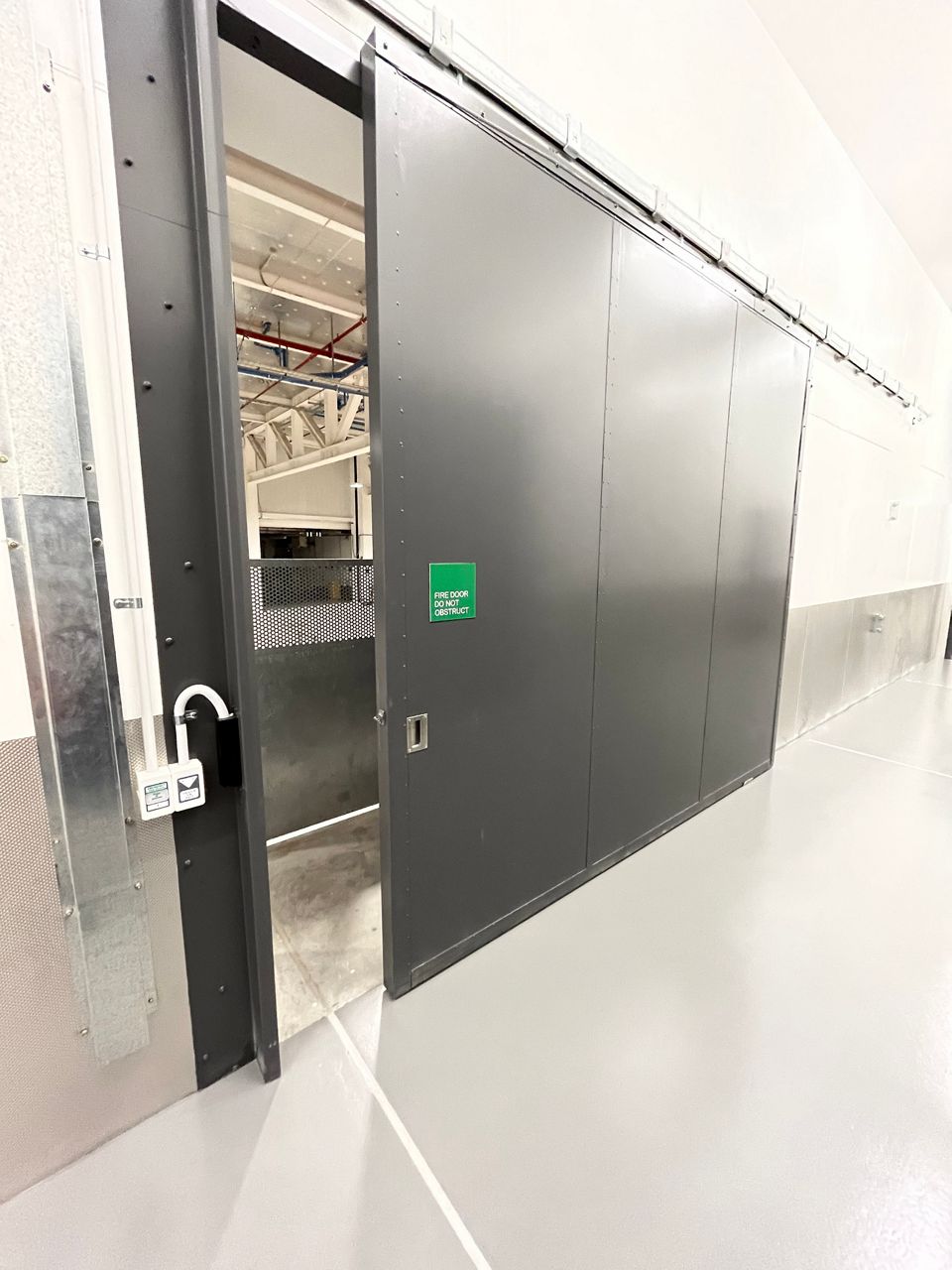

Pacific VP60-S Premium Sliding Fire Door
The VP60-S is a Pyropanel FR board door. The VP60-S sliding fire door set is used where a large opening in a fire separation (up to 10m2) is required to be closed off in the event of a fire and/or in daily use.
The slider may be concealed behind an appropriate cavity wall. Automatic opening and closing is not currently available for Sliding Fire Doors.
Product features:
- 60min fire rating
- Single
- 2 facing options
- 1 standard frame option
- Compatible with masonry wall only
- Can be installed in a cavity wall system
- Meets NZS4520.2010 standard
Product Options
Leaf Size
The thickness of the VP60-S door leaf is 65mm with an approximate leaf weight of at least 31kg/m2
Wall Type Fire Resistance Rating
Stability/Integrity/InsulationDoor Application Max Leaf
Height (mm)Max Leaf
Width (mm)Masonry Wall -/60/30 Sliding 4000 3000 Notes:
- The VP60-S is not available as a ‘pair’ door set. Refer to the VP240-S.
- The maximum area per sliding door leaf is 10.5m2.
Wall Types
The VP Slider may be hung from a concrete or masonry wall either of precast concrete (thickness 100mm minimum) or grouted blockwork (thickness 190mm minimum).
Installation on plasterboard walls no longer compliant as of February 2024.
Leaf Facings
- Plywood
- Steel Sheet 0.9mm
Leaf Edges
The leaf edges listed below are available for the VP60-S door set
Meeting Stile
Not applicable for this door set.
Please refer to the installation instructions for more information on the frame profiles of this door set.
Please contact PDS for information on vision panel options.
Thermal insulation
This door leaf has a thermal insulation rating (R-value) of 0.645 Km2/W.
Standard Track System
A Standard Track System is supplied with this door set.
Standard Closer
Weight and pulley system with self-closure activated by fusible link in the event of fire.
Electromagnetic Closing Weight System
A weight and pulley system modified for electromagnetic release is available. Closure is on fire/smoke detection activated by sensors (by others) mounted each side of the door set to lintel or ceiling.
Product Optional Extras
Not applicable for this door set.
