Pacific TB60DA Economy Fire Door

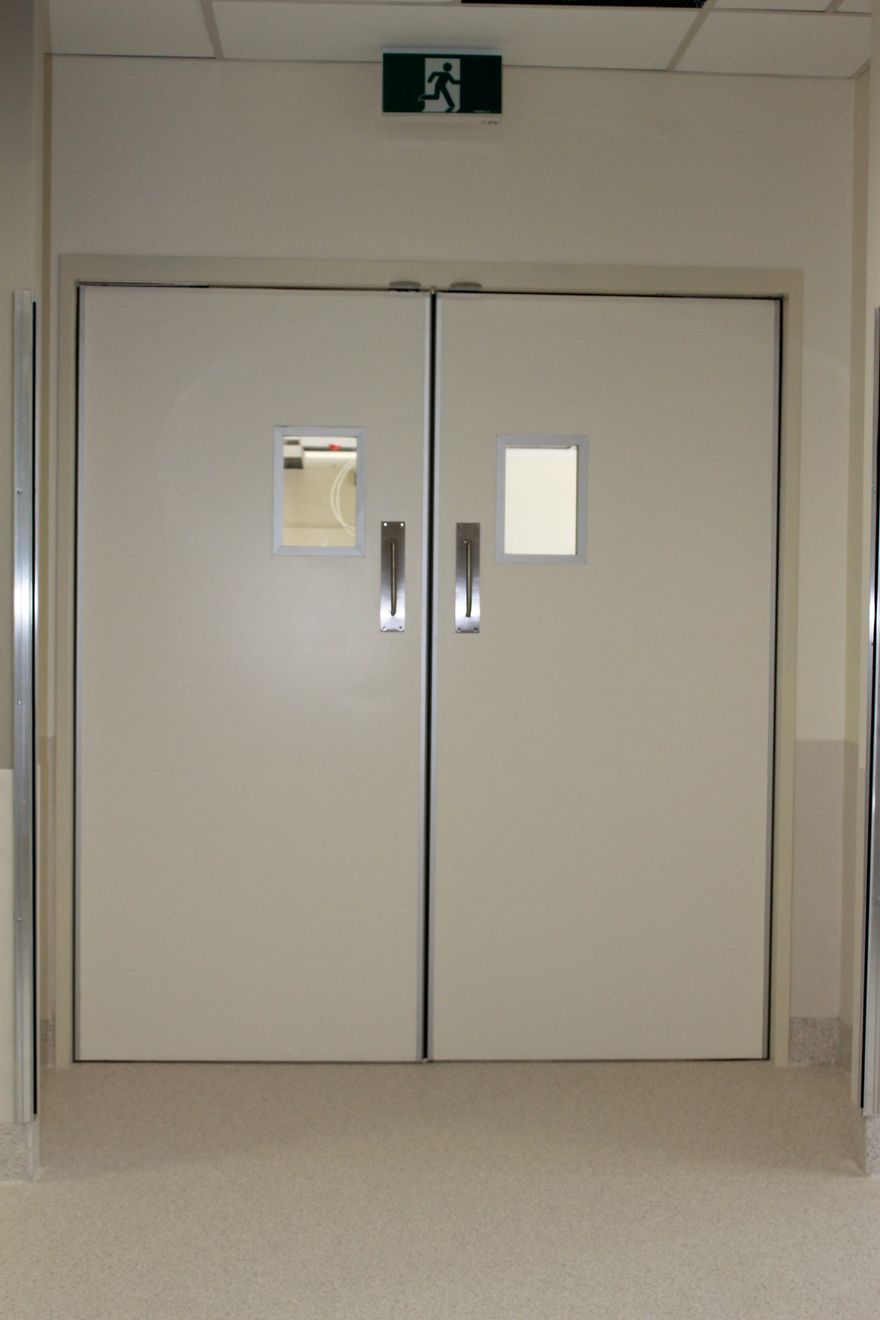

The Pacific TB60DA is a  double action doorset. The door set configuration may be single leaf  finished with a variety of facings and hung in timber frame.

Product features:

·       60min fire rating

·       Single

·       6 facing options

·       3 frame options

·       2 glass options

·       Compatible with Timber, steel, Korok walls

·       Optional side lights and over lights

·       Acoustic rating available

·       Ventilation grilles available

·       Meets NZS4520.2010 standard

TB60 DATB60 DA

Product Options

  • The thickness of the TB60DA door leaf is 55mm with an approximate leaf weight of 35.2kg/m2



     Wall TypeJamb TypeFire Resistance Rating
    Stability/Integrity/Insulation    		Door ApplicationMax Leaf
    Height (mm)    		Max Leaf
    Width (mm)

    Timber Stud Wall

    Steel Stud Wall

    Masonry

    		Timber-/60/60Single2200 960

    Notes:

    1. High Acoustic values are difficult to achieve with double acting doors as it is not possible to fit drop sill seals to the door bottoms, and meeting styles present a sound path

    Wall Types

    The TB60 can be installed in masonry walls and timber stud and steel studd drywalls of at least 60 minute fire resistance.

    If installed into a 30-minute rated wall, the fire rating will be limited to -/30/30.

  • Leaf Facings

    • MDF
    • Ply
    • Timber veneers
    • High pressure laminate
      up to 1.5mm thick (e.g. Laminex, Formica)



    Notes:

    1. Standard Paint Quality doors are allowed ‘non-clashed’ to provide best surface for finish painting.
    2. Other facings may be available, please contact Pacific Doors to discuss further options.

    Leaf Edge

    -Bullnose

    Meeting Stiles

    No Pair

  • Timber Frame

    The timber frame profiles listed below are available for the TB60DA door set.

    Timber density requirements exclude some species of timber. Timber must be a hardwood with minimum density of 600kg/m3

    Steel Frame

    This door set is only available in a timber frame.

  • Glazing Type Maximum Glazed Area (mm) Max Height (mm) Max Width (mm) Glazing Bead FRR with Vision Panel
    Timber Aluminum Up to 0.065 m2 Over 0.065 m2
    Pyranova 60 S3.0 (Pyro 23mm) 0.66 1100 600 √   -/60/60 -/60/60
    Pyranova 30 S3.0 (Pyro 15mm) 0.33 815 400 √   -/60/60 -/60/30
    Pyranova 30 S3.0 (Pyro 15mm) 0.72 1200 600 √   -/30/30 -/30/30

    Notes:

    1. Up to two vision panels allowed in a single leaf (only when using Pyro23 glass). Max. height 800 mm per panel, max. total clear view area 0.96 m2. Please refer to the details below for limitations around two vision panels.
    2. Circular vision panels are not available.
    3. The height and width of the vision panel/s must still fall within the maximum glazed area.
    4. Vision panel only approved for 55mm Triboard.
    5. The distance between the vision panel cutout and any item of hardware shall be at least 60 mm.

    Standard Vision Panel Cross Sections

    Timber Bead Aluminium Bead
    Not Applicable for this door set

  • Acoustical performance

    An acoustic rating of STC 34  is available for this doorset..

Product Optional Extras

  • Ventilation Grilles

    Lorient LVH intumescent grilles are available in the following sizes:

    • 300 x 300 mm
    • 450 x 450 mm

    Please note that fire doors with ventilation grilles cannot be certified as ‘Smoke control' door sets.

    Intumescent grilles are available to a maximum rating of -/60/30.

    V-GROOVES

    V-grooves are not an option on this door type.

  • Overpanels are not applicable for this door set. Please refer to the VP60 datasheet.

  • Sidelights and Overlights are not applicable for this door set. Please refer to the VP60 datasheet.
