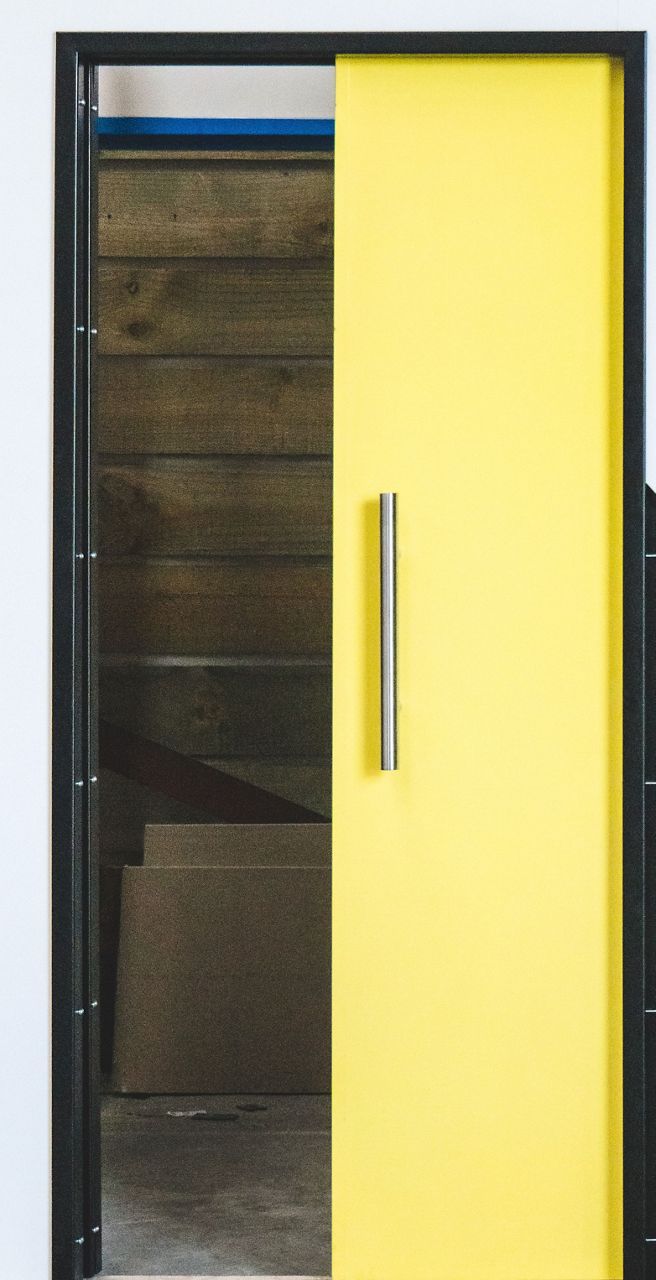

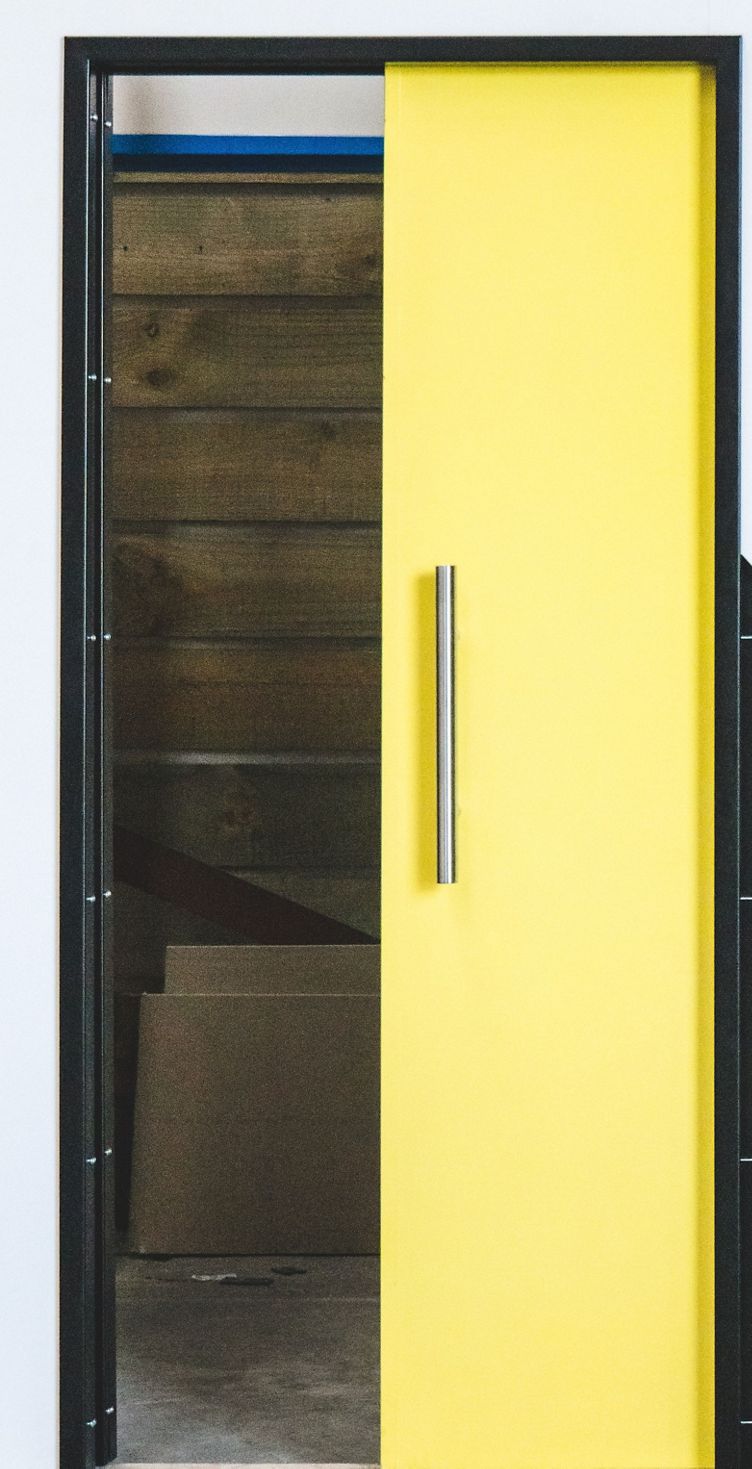

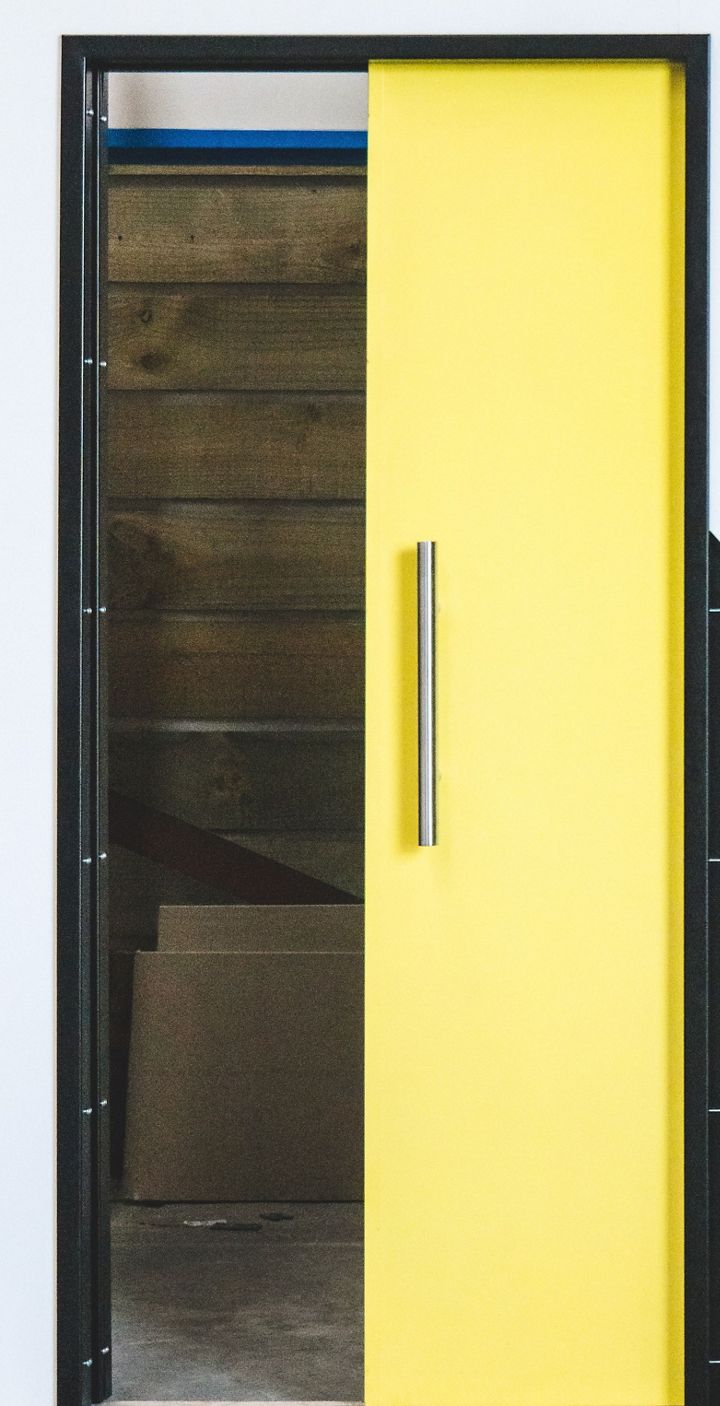

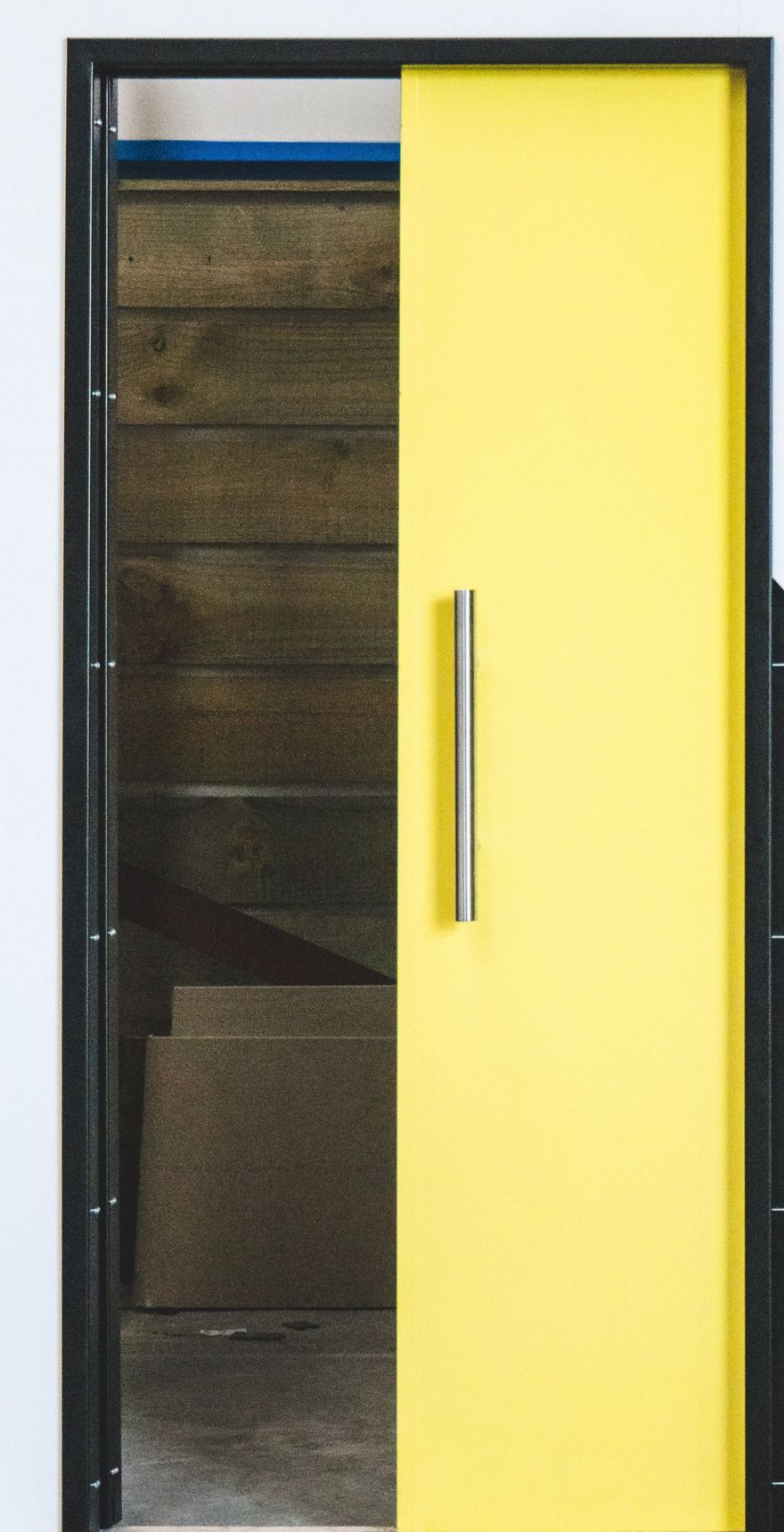

Pacific FS60 Fire Rated Cavity Sliding Door
The FS60 Fire rated cavity sliding door set is suitable for interior use and is available in a steel frame. This door set is the only fire rated cavity sliding door set available in the New Zealand market.
Product features:
- 60min fire rating
- Single
- 3 facing options
- 1 standard frame option
- 1 glass option
- Compatible with timber stud and steel stud wall
- Meets NZS4520.2010 standard
Product Options
Leaf Size
The thickness of the Cavity Slider door leaf is 40 – 44 mm (depending on facings) with an approximate leaf weight of 46 kg/m2 (steel faces) or 38 kg/m2 (timber faces).
Wall Type Jamb Type Fire Resistance Rating
Stability/Integrity/InsulationDoor Application Max Clear Opening
Height (mm)Max Clear Opening
Width (mm)Steel Stud Wall
Timber Stud WallSteel -/60/30sm Sliding 2400 1200* Notes:
- Sizes above are the dimensions between jambs, and between floor an frame head.
- Maximum clear opening width is reduced by 260mm if face mounted hardware is required.
- The 'sm' above denotes that the door is available as a smoke control door set if required (not the default).
- The door set needs to be connected to a fire detection system for the fire rating to be valid.
- 1187 mm is the maximum clear width if MDF leaf faces are chosen
Wall Types
Jambs may be connected to timber stud or steel stud plasterboard walls having a FRR of at least -/60/60 in accordance with AS 1530.4:2014.
Minimum stud depth is 90 mm.
Leaf Facings
- MDF (max. 1187 mm clear width)
- High Pressure Laminate.
- Metal sheet, EGZ or Galvanised.
The door leaf is capped on the strike edge with a folded steel capping.
Meeting Stile
This door set is not available in a pair configuration.
Timber Frame
Timber frames are not available for this door set.
Steel Frame
The steel frame profiles listed below are available for the FS60 door set.
For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Glazing Type Maximum Glazed Area Max Height (mm) Max Width (mm) Glazing Bead FRR with Vision Panel Timber Aluminum Up to 0.065m2 Over 0.065m2 Pyrobel* 0.1408m2 704 200 √ -/60/30 -/60/30 Notes:
- Please note that the height and width of the vision panel must still fall within the maximum glazed area.
- Glazing types marked with * indicate Grade A Safety glass.Standard Vision Panel
Standard Vision Panel :
Aluminium Bead
Circular Vision Panels
Circular vision panels are not an option on this door set.
Thermal insulation
This door leaf has a thermal insulation rating (R-value) of 0.596 Km2/W.
The following hardware is certified for use on the fire rated cavity slider:
Hardware Type Model Slider track Henderson Soltaire 120 H120 Slider hangers Henderson Soltaire 120 H51 Floor guide Henderson Soltaire 106HSS/94 Latch set Lockwood 3573 sliding door lock with latching strike Turn knob set Lockwood Symphony 1220 series turn knob set (with accessibility option) Pull handles Kaba FP102 flush pull Pull handles Lockwood 142x300SSS Entrance handles, through fixed Pull handles Sopersmac S85 offset grip handles, through fixed Pull handles Legge 1195, through fixed (obsolete) Edge pull Windsor Brass 5267 Edge pull Windsor Brass 5329
Product Optional Extras
Push or Kickplates
Kickplates are not an option on this door type.
Ventilation Grilles
Ventillation grilles are not an option.
Overpanels are not an option on this door set.
Sidelight and overlights are not an option on this door set.
