Pacific VP30HR Heritage Fire Doors

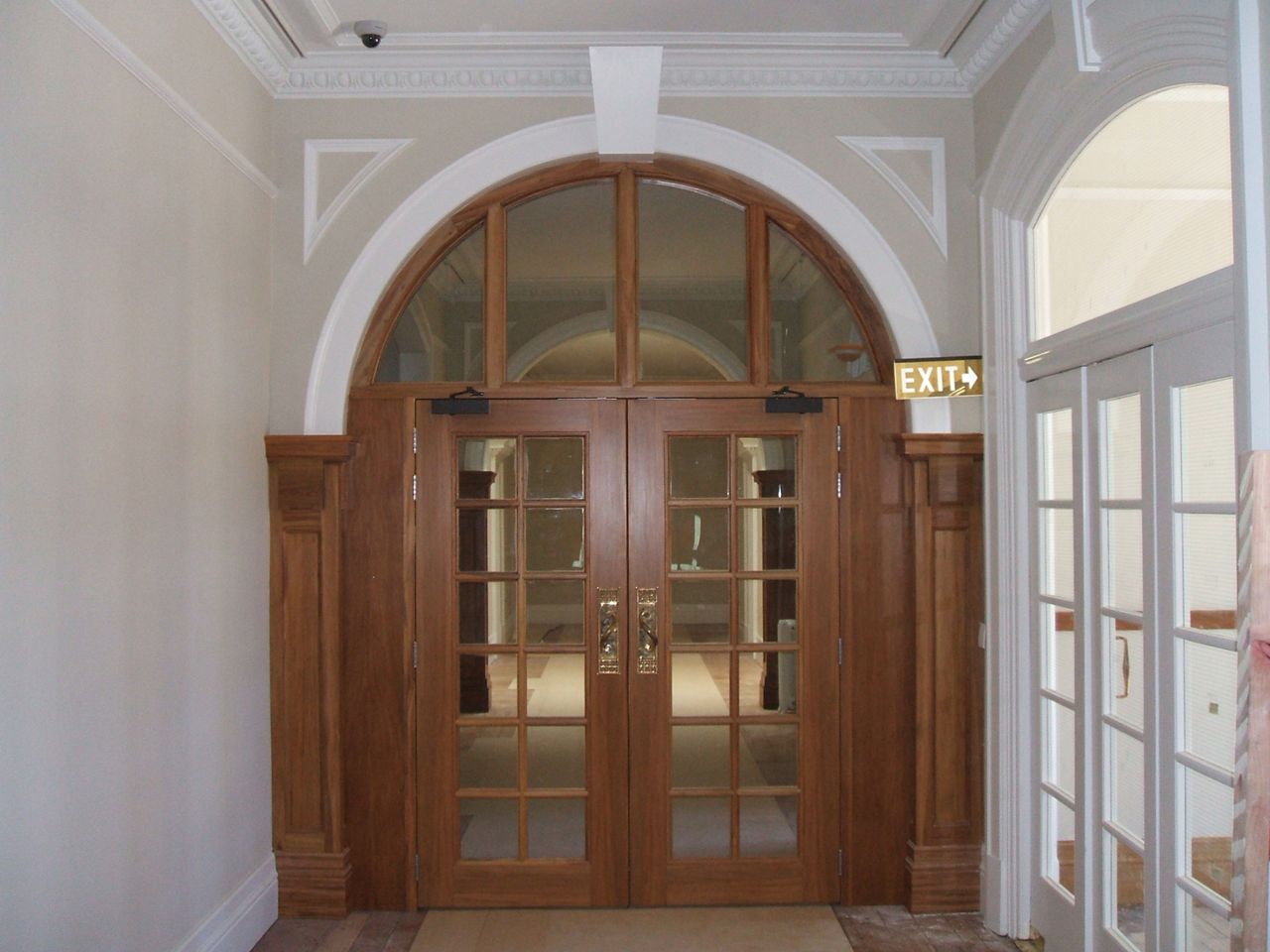

The VP30HR Heritage fire door set is designed to replicate traditional rail and stile timber door construction with the appearance of recessed flat or raised panels and timber bolection mouldings. Timber veneers are used to replicate clear finish timber rails and stiles. The VP30HR offers large glazing capabilities including sidelights and overlights.
Product features:
- 30min fire rating
- Single or pair
- 6 facing options
- 4 frame options
- 5 glass options
- Compatible with timber stud, steel stud and Korok walls
- Optional side lights and over lights
- Acoustic rating available
- Ventilation grilles available
- Meets NZS4520.2010 standard
Product Options
Leaf Size
The VP30 Heritage door set is designed to replicate traditional rail and stile timber door construction with the appearance of recessed flat or raised panels and timber bolection mouldings. Timber veneers are used to replicate clear finish timber rails and stiles.
The Pacific VP30 Heritage is a side hung fire door set. The VP30 Heritage door set can be single leaf or pair, hung in a timber frame. The frame may include adjacent sidelights or overlights, which may also include decorative timber features.
Timber-framed smoke control doors include a seal in the frame. If required, bottom seals can be selected from the Hardware List.
The thickness of the VP30HR door leaf is 65mm with an approximate leaf weight of 35kg/m2
Wall Type Jamb Type Fire Resistance Rating
Stability/Integrity/InsulationDoor Application Max Leaf
Height (mm)Max Leaf
Width (mm)Steel Stud Wall
Timber Stud Wall
Masonry WallTimber -/30/30sm Single 2300 1020 Pair 2300 1020 Notes:
- Please note that the maximum leaf width shown above is measured per door leaf.
- The ‘sm’ above denotes that the door is available as a smoke control door set.
- Minimum width for a fire door leaf is governed by the need to fit a compliant closer. Typically, 400 mm is the practical minimum.
Wall Types
Jambs may be connected to timber stud, steel stud or concrete masonry.
The minimum specification for each wall type is:- Precast concrete (100mm thickness) or grouted blockwork (140mm thickness).
- Non-load bearing timber stud partitions of minimum lining thickness of 10mm Fyreline Gib Board® in accordance with GBT30 (Gib ® Fire Rated Systems).
- Non-load bearing steel stud partitions of minimum specification GBS60 (Gib® Fire Rated Systems).
Leaf Facings
- MDF
- Timber Veneers
- Decorative Timber Mouldings
- Bollection Mouldings
- Plywood
- Raised Panels
Notes:
- Of the above facings only those marked * may extend around the door edge.
- Steel frames are required where metal capping is used.
- Timber veneer requires FRR -/30/30
- Standard Paint Quality doors are allowed ‘non-clashed’ to provide best surface for finish painting.
- Other facings may be available, please contact Pacific Doors to discuss further options.
Leaf Edges
The leaf edges listed below are available for the VP30HR door set
Paint quality doors are non-clashed as standard.
Meeting Stiles
The meeting stiles listed below are applicable to paired door sets only.
Timber Frame
The timber frame profiles listed below are available for the VP30HR door set.
The timber species of the frame must be pine or denser (500kg/m3)
Steel Frame
The VP30HR is not available in a steel frame. Please view the VP60HR for a steel framed 30 minute fire door set.
Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. Timber sills are not available on fire doorsets. For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Glazing Type Maximum Glazed Area Max Height (mm) Max Width (mm) Glazing Bead FRR with Vision Panel Timber Aluminum Up to 0.065m2 Over 0.065m2 Pyrobel* 0.972m2 1800 540 √ -/30/30 -/30/30 Firelite 0.884m2 1300 680 √ -/30/30 -/30/- Georgian Wired 0.32m2 850 770 √ -/30/30 -/30/- Robax 0.32m2 850 770 √ -/30/30 -/30/- Pyran* 0.32m2 850 770 √ -/30/30 -/30/- Notes:
- Please note that the height and width of the vision panel must still fall within the maximum glazed area.
- A maximum of two vision panels are permitted per leaf.
- Glazing types marked with * indicate Grade A Safety glass.
- Pyrobel is not suitable for exterior doors.
The VP30HR has the largest vision panel options of all our timber fire doors. Please refer to the Forster Glazed section for larger options.
Standard Vision Panel Cross Sections
Timber Bead Aluminium Bead Not applicable for this door set. Thermal insulation
This door leaf has a thermal insulation rating (R-value) of 0.645 Km2/W.
Product Optional Extras
Push or Kickplates
Push plates or kickplates can be of the below permitted materials and can be either surface mounted or recessed flush. Fixing may be via screws or contact adhesive only.
- Steel (mild or Stainless)
- Vinyl Sheets up to 2mm
- Formica
- Acrovyn
- Korogard
The maximum height of non-Fire Rated Formica kickplates is 685mm.
Overpanels
Screw fixed side panels or overpanels may be fitted adjacent. Please contact Pacific Doors to get more information on this option.
Timber Frame - Insulated Sidelights and Overlights
Restrictions
Maximum height of overall unit is 4275mm.
The insulated glazing types shown below maybe used for this configuration.
- Pyrobel - clear pane maximum 2010h x 1300w
This sidelight and overlight configuration is available for single and paired door sets.
Timber Frame - Uninsulated Sidelights and Overlights
Restrictions
Maximum height of overall unit is 3400mm.
The uninsulated glazing types shown below maybe used for this configuration.
- Firelite - clear pane maximum 1500h x 900w
- Georgian Wired - clear pane maximum 1000h x 590w
This sidelight and overlight configuration is available for single and paired door sets.
