Pacific VP30DA Premium Fire Door

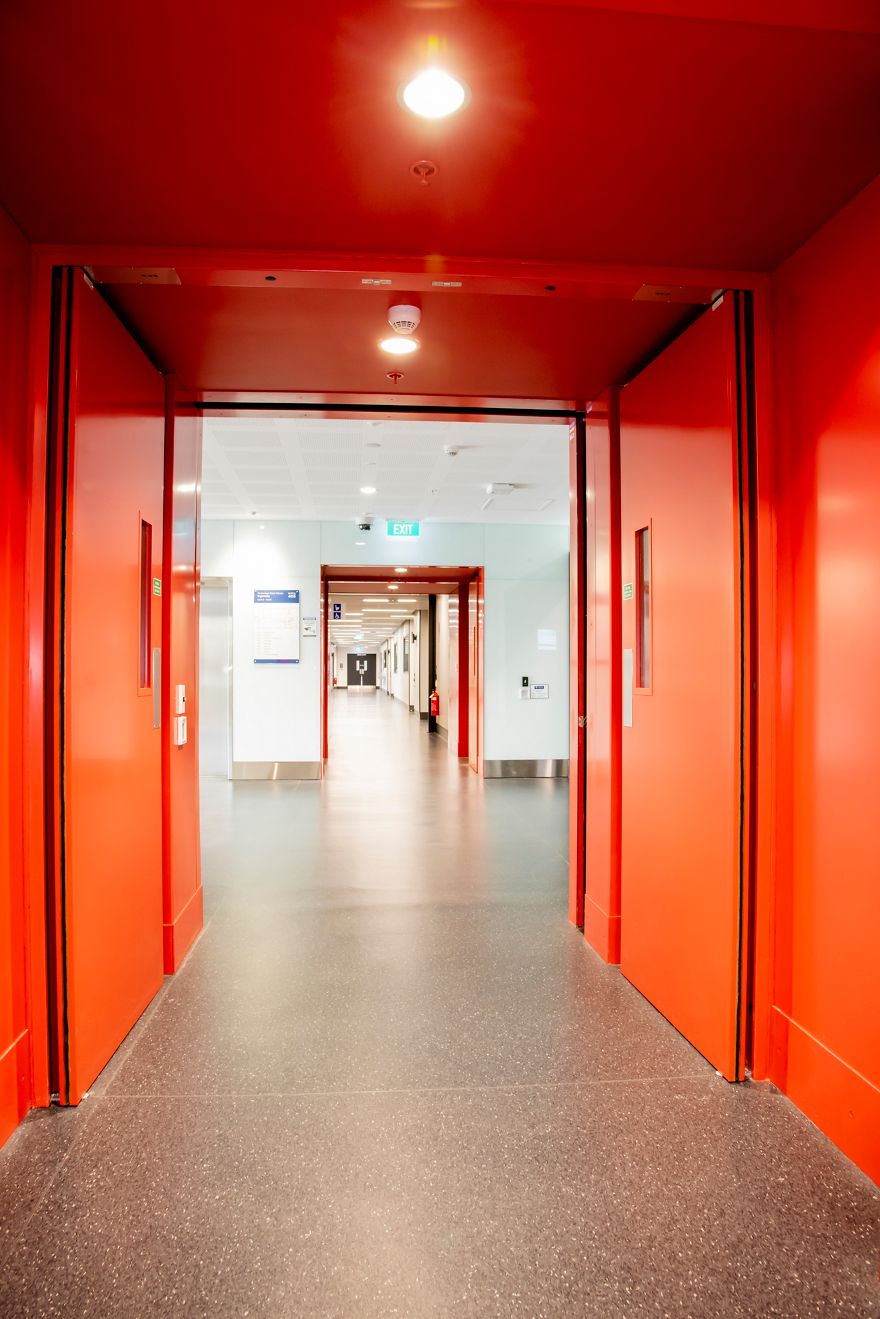

The Pacific VP30DA double action steel framed door set (VP30DA SF) is a 180° pivoting door suitable for interior installation only. The door set configuration may be single leaf or pair, finished with a variety of facings and pivoted in a steel frame.

Product features:

  • 30min fire rating
  • Single or pair
  • 8 facing options
  • 1 frame option
  • 5 glass options
  • Compatible with timber stud, steel stud, masonry wall
  • Optional overpanels
  • Acoustic rating available
  • Ventilation grilles available
  • Meets NZS4520.2010 standard
VP30DAVP30DA

Product Options

  • Lead Size

    The Pacific VP30 double action steel framed door set (VP30DA SF) is a 180° pivoting door suitable for interior installation only. The door set configuration may be single leaf or pair, finished with a variety of facings and pivoted in a steel frame.

    Bottom seals are not available with this door type.

    The thickness of the VP30DA SF door leaf is 48mm with an approximate leaf weight of 35kg/m

     Wall TypeFire Resistance Rating
    Stability/Integrity/Insulation    		Door ApplicationMax Leaf
    Height (mm)    		Min Leaf
    Width (mm)    		Max Leaf
    Width (mm)

     Steel Stud Wall

    Timber Stud Wall

    Masonry Wall

    		-/30/30smSingle or Pair26504901075
    Single or Pair24004901200

    Notes:

    1. Please note that the maximum leaf width shown above is measured per door leaf.
    2. Insulation ratings must be notified at time of pricing for steel frames.
    3. Please see the below detail for smoke control



    Wall Types

    Jambs may be connected to timber stud, steel stud or concrete/masonry walls.
    The minimum specification for each wall type is:

    • Precast concrete (150mm thickness minimum) or grouted blockwork (140mm thickness minimum).
    • Non-load bearing steel stud partitions of minimum specifications GBS60 (for VP30-DA) or GBS90 (for VP60-DA). Note that 100mm nom. wall framing is necessary where fitting of the head spring hardware is specified.
    • Non-load bearing timber stud partitions of minimum specifications GBT30 (for VP30-DA) or GBT60b (for VP60-DA) or GBT90 (for VP90-DA) (as listed in “Gib® Fire Rated Systems”), all based on minimum 100x50mm framing. Note that minimum 100mm nom. wall framing is necessary where fitting of head spring hardware is specified.

  • Leaf Facings

    • Plywood
    • Steel – mild or stainless (0.6 – 0.9mm)
    • Timber veneers
    • Aluminium sheet
    • Decorative timber mouldings
    • MDF
    • Hardboard
    • High pressure laminate
      up to 1.5mm thick (e.g. Laminex, Formica)

    Notes:

    1. Of the above facings only those marked * may extend around the door edge.
    2. Steel frames are required where metal capping is used.
    3. Timber veneer requires FRR -/30/30 and is only available with a packed steel frame
    4. Standard Paint Quality doors are allowed ‘non-clashed’ to provide best surface for finish painting.
    5. Paint Quality and veneered doors will have visible phenolic stud heads near the top and bottom of both leaf faces
    6. See Additional Door Options for more facing alternatives.



    Leaf Edges

    The leaf edges listed below are available for the VP30DA SF door set



    Meeting Stile

    The meeting stiles listed below are applicable to paired door sets only.

  • Timber Frame

    This door set is not available in a timber frame. Please see the VP30HR DA TF door set for a double action fire door in a timber frame.



    Steel Frame

    The steel frame profiles listed below are available for the VP30DA SF door set.

    Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. Timber sills are not available on fire doorsets. For more in depth information on frame profiles and sizes, please see our Installation Instructions.

  • Glazing Type Maximum Glazed Area Max Height (mm) Max Width (mm) Glazing Bead FRR with Vision Panel
    Timber Aluminum Up to 0.065m2 Over 0.065m2
    Pyrobel* 0.32m2 850 950 √ √ -/30/30 -/30/30
    Georgian Wired 0.32m2 850 950 √ √ -/30/30 -/30/-
    Firelite 0.32m2 850 950 √ √ -/30/30 -/30/-
    Robax 0.32m2 850 950 √ √ -/30/30 -/30/-
    Pyran* 0.32m2 850 950 √ √ -/30/30 -/30/-

    Notes:

    1. Please note that the height and width of the vision panel must still fall within the maximum glazed area.
    2. A maximum of two vision panels are permitted per leaf.
    3. Glazing types marked with * indicate Grade A Safety glass.
    4. Circular vision panels are not currently offered for this product.

     For 30 minute door sets with larger vision panel options, please contact Pacific Doors.



    Glazing details





    Standard Vision Panel Cross Sections

    Timber Bead* Aluminium Bead

  • Thermal insulation

    This door leaf has a thermal insulation rating (R-value) of 0.645 Km2/W.

Product Optional Extras

  • PUSH OR KICKPLATES

    Push plates or kickplates can be of the below permitted materials . These may be surface mounted or recessed flush with the door facing. Fixing by screws or contact adhesive.

    • Steel
    • Acrovyn



    Restaurant Function

    A modified door set allowing two door leaves to open 90o in opposite directions and closing onto short header-fixed stops is available.



      Excessive Frame Gaps

      Standard gap between leaf edge and frame is 3-4 mm. Gaps between 4-10 mm can be made compliant by inclusion of an intumescent seal in the frame scallop.



      Decorative Panels

      Decorative panels (e.g. stone, glass, timber or similar) can be added to one face of the door leaf provided:

      • Panel is glue fixed (no screws or nails)
      • Panel weight is less than 35 kg
      • Leaf dimensions are 2400 x 1020 or less

      Panels to be installed on site by others. They can be either glued directly to the face of the leaf or onto timber battens glued to the leaf.

      If the decorative panel is on the hinge face of the leaf, please specify extended "wide throw" hinges.
      Please note that special hardware items may be required (e.g. extended spindles).
      Decorative panels are not allowed in conjunction with vision panels.

      Smoke Control

      If a smoke control rating is required, the top edge seal is a Lorient LAS3004si silicone fin seal face mounted to the top of one leaf face.

    • Steel Framed Transom Overpanel Elevations and Details

      Overpanels with transom are available to an overall height of 3600mm for single or paired door sets.

      Please note that when adding an overpanel to this door set, the permitted height and width of the door leaf reduces to 2040h x 930w.

      Pair:

      Single:

      Steel Transom Overpanel Detail

    • Sidelights and Overlights are not applicable to this door set. Please contact Pacific Doors to discuss your requirements.
