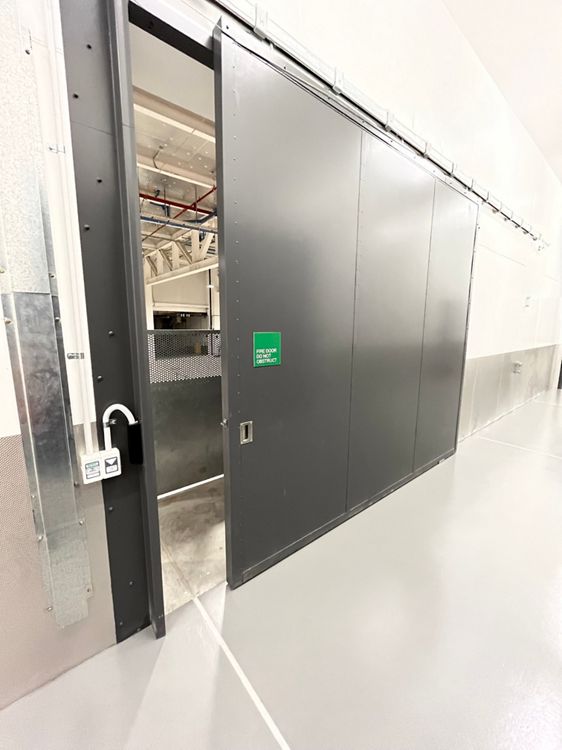

Pacific VP240-S Premium Sliding Fire Door
The VP240-S sliding fire door set is used where a large opening in a fire separation (up to 29m2) is required to be closed off in the event of a fire and/or in daily use. Automatic opening and closing is not currently available for Sliding Fire Doors.
Product features:
- 240min fire rating
- Single or bi-parting
- 2 facing options
- Suitable for interior only
- Compatible with masonry wall
- Available as a wall cavity system
- Meets NZS4520.2010 standard
Product Options
The thickness of the VP240-S door leaf is 83mm with Plywood facings or 77mm with Steel facings. The approximate leaf weight is at least 41kg/m2
Wall Type Fire Resistance Rating
Stability/Integrity/InsulationDoor Application Max Leaf
Height (mm)Max Leaf
Width (mm)Masonry Wall -/240/30 Sliding 5000 6000 Masonry Wall -/240/30 Bi - Parting 4000 6000 Notes:
- The maximum area per sliding door leaf is 30m2
Wall Types
The VP240-S slider may be hung from a concrete or masonry wall either of precast concrete (thickness 150mm minimum) or grouted blockwork (thickness 190mm minimum).
Installation on plasterboard walls no longer compliant as of February 2024.
Leaf Facings
- Plywood
- Steel Sheet 0.9mm
Leaf Edges
The leaf edges listed below are available for the VP120-S door set
Meeting Stile
Not applicable for this door set.
Please refer to the installation instructions for this door set for more information.
Please contact PDS for information on vision panel options
Thermal insulation
This door leaf has a thermal insulation rating (R-value) of 0.692 Km2/W.
Hardware/Closing Systems
A Standard Track System is supplied with this door set.
Standard Closer
Weight and pulley system with self-closure activated by fusible link in the event of fire.
Electromagnetic Closing Weight System
A weight and pulley system modified for electromagnetic release is available. Closure is on fire/smoke detection activated by sensors (by others) mounted each side of the door set to lintel or ceiling.
Product Optional Extras
Not applicable for this door set.
