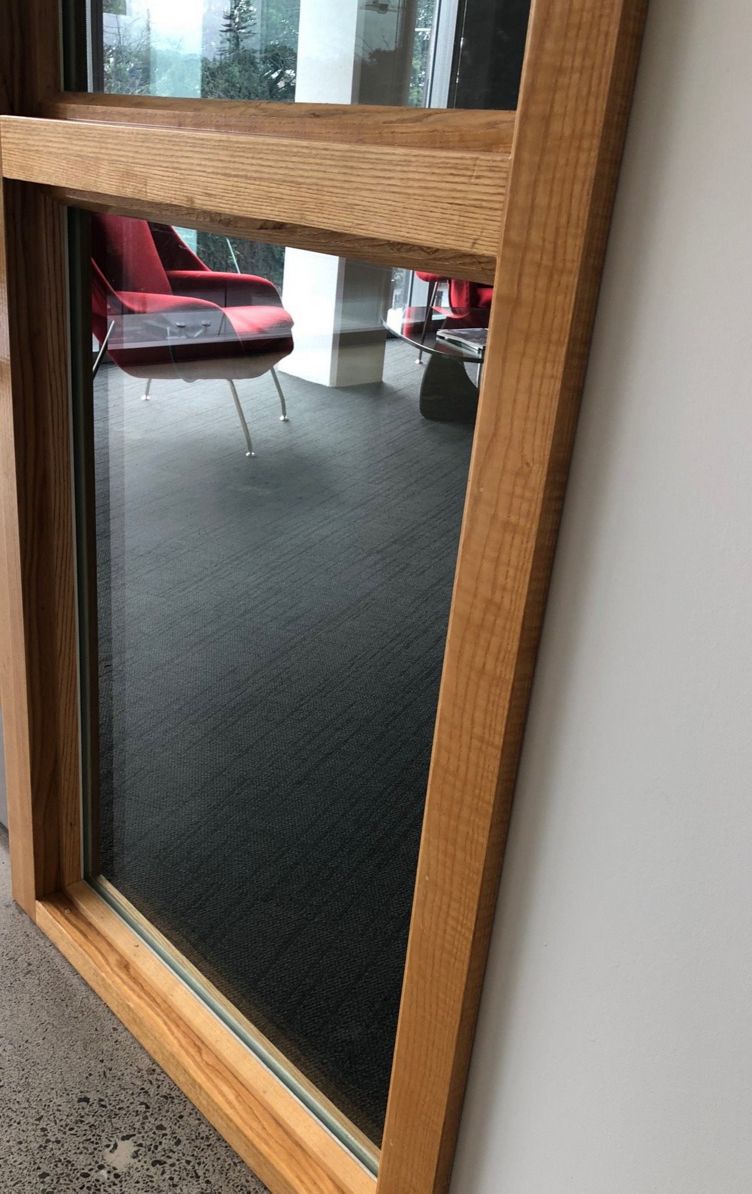

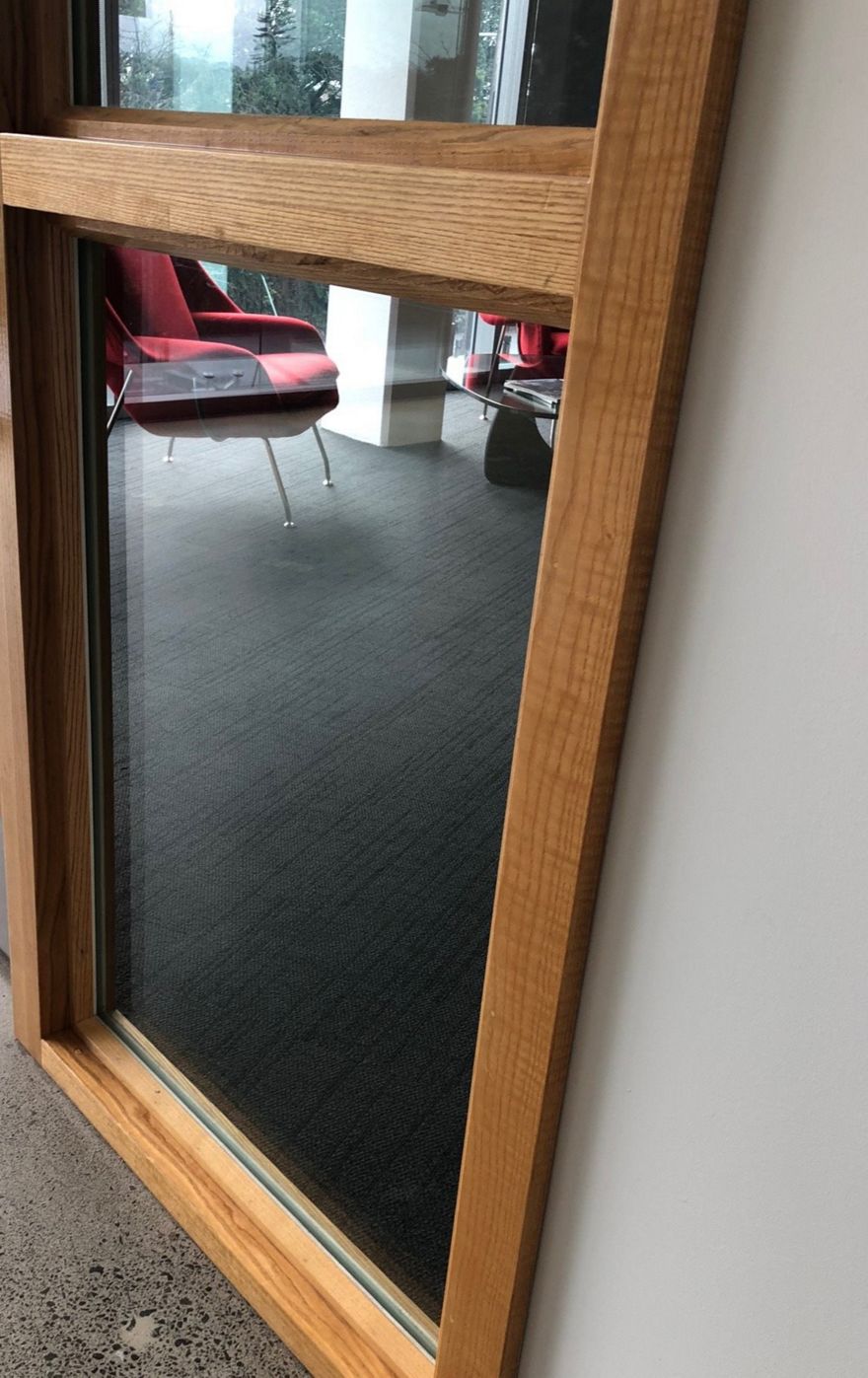

Pacific Single Glazed Timber Framed Acoustic Windows SPA39-AW
Pacific Acoustic Windows are glazing units designed and tested for sound attenuation to a range of STC ratings. The units are all timber framed with fixed glazing, for interior use.
Single glazed units are supplied fully glazed in ready-to-install mode. Large units may require site glazing.
Window Type Max Glazed Area Clear View Overall Frame Frame Type STC Rating Minimum (mm) Maximum (mm) Minimum (mm) Maximum (mm) Timber Steel SPA39-AW 4.9 m2 Height 350 3000 478 3128 √ - 39 Width 150 2500 278 2628 √ - 39 Sizing Rules
The tested clear view size for this window is 1510 mm H x 810 mm W. Acoustic performance may vary for extremely large or small units.
Frame Types & Profiles
Timber Frame
This window is available in the below frame profile.
For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Steel Frame
These units are not available in a steel frame.
Wall Types
- Masonry or Gib® Systems.
The entire assembly including wall, frame and window glazing is the tested unit.
